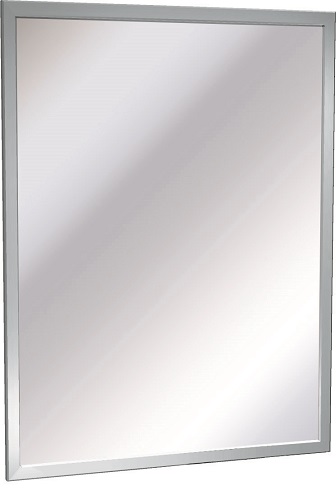

ASI 0600-2028 Inter-Lok Angle Frame Plate Glass Mirror, 20" W x 28" H
This surface-mounted mirror has 1/4" plate glass and a satin-finish frame made from 3/4" x 5/8" roll-formed, 18-gauge Type 304 (18-8) stainless steel angle. Heliarc-welded corners are ground and polished smooth. A concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws; a one-piece back plate attaches with a theft-resistant locking device.
Installation
Install the bracket level and plumb using #10 self-threading screws (by others), then hang the mirror and tighten the top and bottom locking screws. ASI advises that, for its cited accessibility standards, the bottom edge of the reflecting surface should be no higher than 40" above the finished floor; confirm applicable project requirements.
