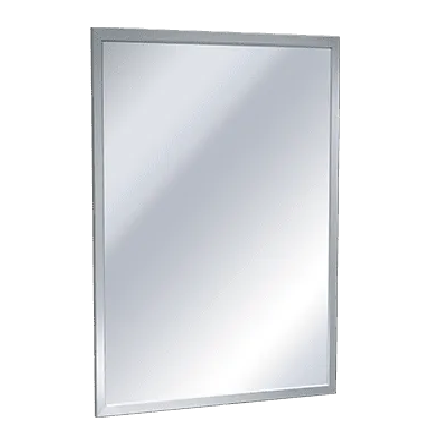

ASI 0600-2220 Inter-Lok Angle Frame Mirror, 22" W x 20" H
This surface-mounted mirror pairs 1/4" plate glass with a satin-finish frame made from roll-formed 18-gauge Type 304 stainless steel angle. The frame measures 3/4" x 5/8"; its heliarc-welded corners are polished smooth. A one-piece back plate attaches to the frame with a theft-resistant locking device.
The concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws. For installation, mount the bracket level and plumb using #10 self-threading screws, which are by others; hang the mirror and tighten the top and bottom locking screws. ASI's installation guidance for ADA/ABA accessibility standards specifies that the bottom edge of the reflecting surface should be no higher than 40" above the finished floor; this is manufacturer guidance, not a blanket compliance determination.
