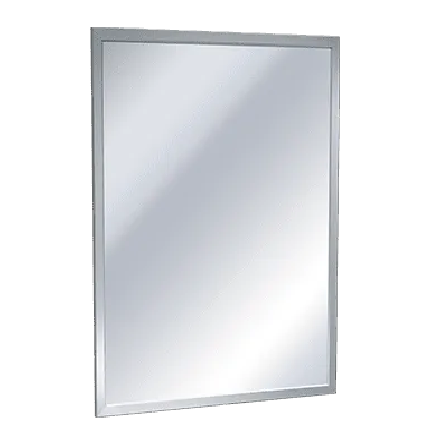

ASI 0600-2060 Stainless Steel Angle Frame Mirror
The ASI 0600-2060 is a 20 x 60 inch, surface-mounted plate-glass mirror for commercial restrooms. Its satin-finish Type 304 stainless steel frame is formed from 18-gauge steel, with welded, smoothly polished corners.
Key specifications
- Mirror: standard 1/4-inch plate glass, silver-coated and hermetically sealed.
- Frame: roll-formed 18-gauge Type 304 stainless steel, with satin-finish exposed surfaces.
- Mounting: concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws; the one-piece back plate attaches with a theft-resistant locking device.
- Warranty: manufacturer warrants the mirror against silver spoilage for 15 years from the invoice date.
Installation
Install the bracket level and plumb using #10 self-threading screws (by others), then hang the mirror and tighten the locking screws at the top and bottom. ASI’s guidance for the cited accessibility standards is to position the bottom edge of the reflecting surface no higher than 40 inches above the finished floor; verify requirements for the project.
