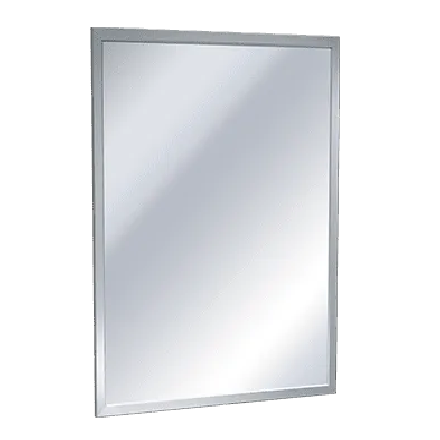

ASI 0600-2460 24 x 60 Inch Angle Frame Mirror
This surface-mounted mirror measures 24 inches wide by 60 inches high and uses standard plate glass in a satin-finish, 18-gauge Type 304 stainless steel angle frame. The angle measures 3/4 x 5/8 inch (19 x 16 mm); the roll-formed interlocking frame has heliarc-welded corners polished smooth.
A concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws. The one-piece back plate attaches to the frame with a theft-resistant locking device.
Mounting and placement
Install the bracket level and plumb using #10 self-threading screws (by others); hang the mirror and tighten the top and bottom locking screws. The manufacturer advises that, for its cited 2010 ADA Accessibility Standards and 2015 ABA Standards, the bottom edge of the reflecting surface should be no higher than 40 inches above the finished floor. This is manufacturer guidance, not a blanket compliance determination.
