ASI 0600-1820 Stainless Steel Inter-Lok Angle Frame Plate Glass Mirror

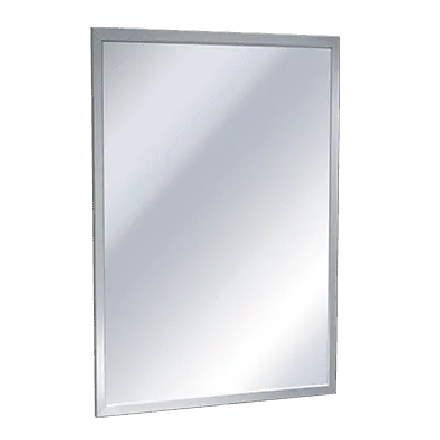

The ASI 0600-1820 is an 18" W x 20" H, surface-mounted plate glass mirror with a 3/4" x 5/8" roll-formed, 18-gauge Type 304 stainless steel angle frame. Its heliarc-welded corners are polished smooth to a uniform satin finish. A concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws; a one-piece back plate attaches with a theft-resistant locking device.
Specifications and warranty
- Mirror: plate glass, warranted against silver spoilage for 15 years from the date of invoice
- Frame: 18-gauge Type 304 stainless steel with a satin finish
- Mounting: surface-mounted concealed hanging bracket; #10 self-threading installation screws are by others
Installation
Install the bracket level and plumb using #10 self-threading screws (by others). Hang the mirror on the bracket and tighten the locking screws at the top and bottom. ASI's installation guidance for the 2010 ADA Accessibility Standards and 2015 ABA Standards calls for the bottom edge of the reflecting surface to be no higher than 40" above the finished floor; this is manufacturer guidance, not a determination of project compliance.
