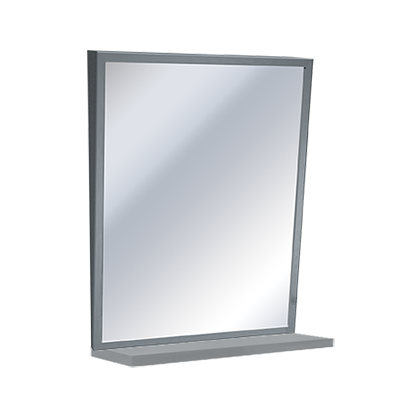

ASI 0537-1830 Fixed-Tilt Mirror with Shelf
The ASI 0537-1830 is an 18 x 30-inch, surface-mounted fixed-tilt mirror with a 6-inch-deep shelf. Its tapered profile is designed to offer visibility for wheelchair users.
Specifications
- Dimensions: 18 inches wide by 30 inches high.
- Frame: 20-gauge Type 304 stainless steel with a satin finish.
- Mirror profile: 4 inches deep at the top, tapering to 1 inch at the bottom.
- Shelf: projects 6 inches from the wall.
- Standard plate-glass mirror is warranted against silver spoilage for 15 years from the invoice date, according to ASI.
Installation and placement
Mount to a wall or partition using four #10 self-threading pan-head or round-head screws, supplied by others. The back has keyhole slots for preinstalled screws; allow 5/8 inch of clearance above the unit to engage them. ASI installation guidance for the cited accessibility standards places the bottom of the reflecting surface no higher than 40 inches above the finished floor; confirm placement for the applicable project requirements.
