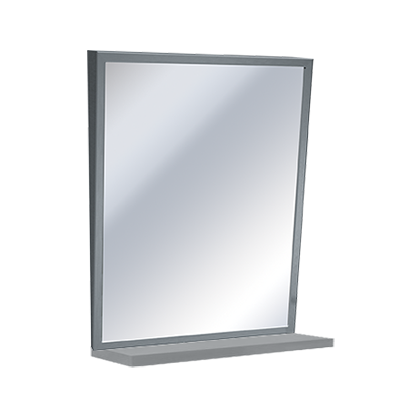

ASI 0537-1630 Fixed Tilt Mirror with Shelf
The ASI 0537-1630 is a 16 x 30 inch surface-mounted fixed-tilt mirror with an attached 6-inch-deep shelf. Its tapered frame and fixed angle are designed to offer visibility for wheelchair patients.
Specifications
- Overall size: 16 inches wide by 30 inches high.
- Frame: 20-gauge Type 304 stainless steel with a satin finish.
- Profile: tapers from 4 inches deep at the top to 1 inch at the bottom.
- Shelf: projects 6 inches from the wall.
- Standard glazing: 1/4-inch plate glass.
Installation
Mount to a wall or partition using four #10 self-threading pan-head or round-head screws (by others). The keyhole mounting slots require 5/8 inches of clearance above the unit to engage the pre-installed screws. For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards, ASI states that the bottom of the reflecting surface should be no higher than 40 inches above the finished floor; verify requirements for the project.
