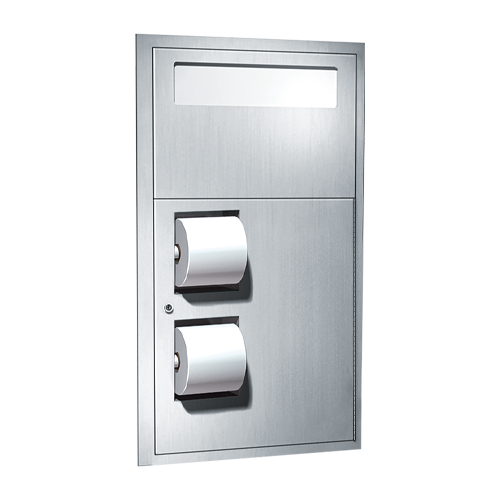

ASI 0485-R Recessed Reverse Toilet Seat Cover and Toilet Tissue Dispenser
The ASI 0485-R is a recessed combination dispenser for paper toilet seat covers and toilet tissue. In this reverse configuration, the toilet tissue dispenser and sanitary napkin disposal are on the opposite side from model 0485. It holds 1,000 paper seat covers and has a tumbler-locked service door.
Capacity and construction
- Seat-cover capacity: 1,000 paper covers, which self-feed until the supply is depleted.
- For toilet tissue, the manufacturer lists standard rolls or 1,800-sheet rolls measuring 4-1/2 in. x 5-1/4 in. diameter.
- Includes a 1.3-gallon removable waste can.
- Type 304 stainless steel with a satin finish; the dispenser door is 18-gauge stainless steel, and the face frame and cabinet are 22-gauge.
- Includes two theft- and vandal-resistant rollers made of high-impact-resistant plastic with molded-in stainless steel endpins (part R-004).
- Overall dimensions: 17-3/8 in. W x 4-1/4 in. D x 30-5/8 in. H. Required rough wall opening: 15-3/4 in. W x 29 in. H x 4 in. minimum depth.
Installation and servicing
Mount in the wall recess with four #10 self-threading screws (by others) through the concealed mounting holes. The top of the rough wall opening is 13/16 in. below the top of the unit. The installation drawing provides placement guidance for accessible installations; verify project requirements and site conditions. To replenish covers or tissue, unlock and open the service door. The visible tissue supply provides a low-level warning. The unit has a one-year warranty from the date of invoice.
