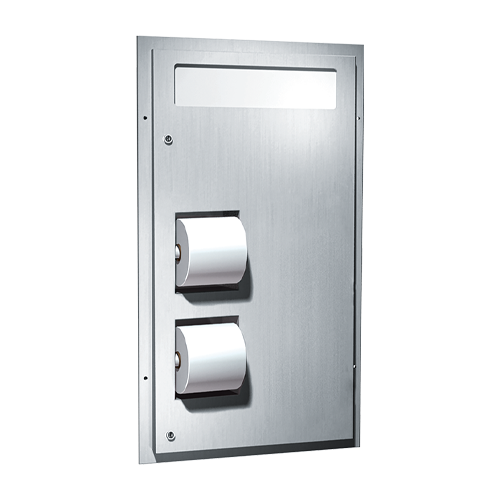

ASI 0484-R Reverse Dual-Access Seat Cover and Toilet Tissue Dispenser
The ASI 0484-R is a reverse, partition-mounted combination dispenser: its toilet tissue dispenser is on the opposite side from model 0484. It mounts centered through a partition for access from both sides, while supplies for both stalls are serviced from one side.
Capacity and construction
- Holds and dispenses 1,000 paper seat covers and four rolls of standard or 1,800-sheet toilet tissue in 4-1/2" x 5-1/4" rolls.
- Seat covers feed automatically until depleted; toilet tissue feeds freely, and the supply level remains visible.
- Type 304 stainless steel with a satin finish; overall dimensions are 17-3/8" x 30-5/8" x 4-1/2".
- Internal baffles prevent line of sight through the unit between stalls. Two tumbler locks secure the cabinet door.
- Four supplied theft- and vandal-resistant rollers (P/N R-004) have high-impact plastic bodies and molded-in stainless steel end pins.
Partition fit and installation
Plan a 15-1/2" W x 28-7/8" H cutout in a 1/2" to 2" thick partition. Install with the supplied #10 x 3/4" self-threading Phillips oval-head screws, positioning the top of the face trim 57" to 61" above the finished floor. The cutout is 7/8" below the top of the face trim.
