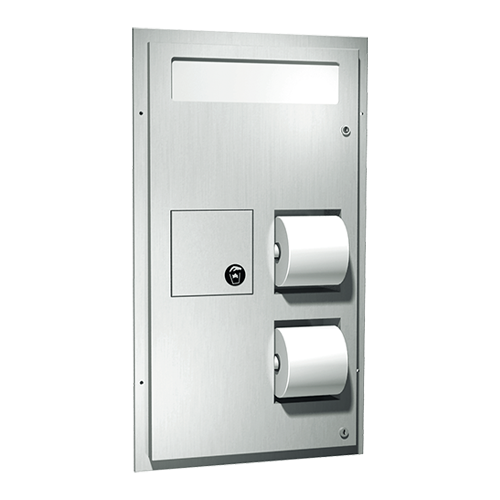

ASI 0481 Dual-Access Seat Cover, Tissue and Napkin Disposal Unit
This partition-mounted combination unit can be used from both sides of the partition and is serviced from one side. It holds 1,000 paper seat covers and four standard or 1,800-sheet toilet paper rolls measuring 4-1/2" x 5-1/4". Internal baffles prevent line of sight between stalls. The removable waste container holds 1.3 gal (4.9 L).
The unit has a Type 304 stainless steel satin-finish face and cabinet, two tumbler locks, and four supplied theft- and vandal-resistant rollers with molded-in stainless steel endpins. The self-closing disposal door accepts waste; toilet paper, seat covers, and the waste container are serviced by unlocking and opening the cabinet. The waste container is emptied manually as maintenance needs require.
Partition installation
Overall dimensions are 17-3/8" W x 4-1/4" D x 30-5/8" H. The required partition cutout is 15-1/2" W x 28-7/8" H for a partition 1/2" to 2" thick. Install with the top of the face trim 57" to 61" above finished floor; the cutout is 7/8" below the top of the face trim. #10 x 3/4" Philips oval-head self-threading screws are supplied.
