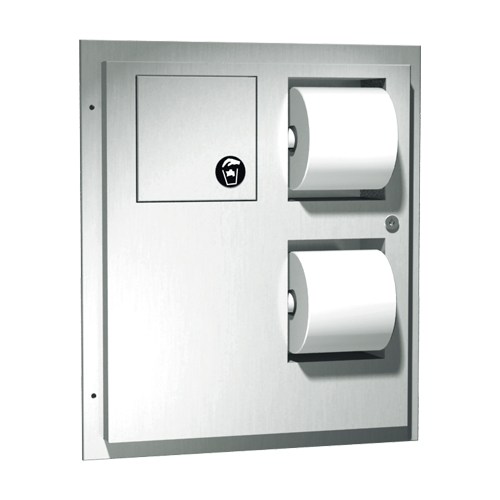

ASI 04813 Dual-Access Toilet Tissue Dispenser and Napkin Disposal
The ASI 04813 is a partition-mounted combination unit that can be used from both sides of the partition but is serviced from one side. It holds four standard or 1,800-sheet toilet tissue rolls and has a removable 1.3-gallon (4.9 L) waste container.
Capacity, construction, and operation
- Accepts standard or 1,800-sheet rolls measuring 4-1/2" x 5-1/4" diameter. Rolls feed until depleted, and the visible supply level provides a low-supply warning.
- The waste receptacle is removable and emptied manually according to maintenance needs. Its safety-edged finger hole provides a grip for removal.
- The waste-disposal and tissue-dispenser doors are 18-gauge Type 304 stainless steel; the face frame and cabinet are 22-gauge stainless steel. The unit has a satin finish.
- Two tumbler locks secure the cabinet door and are keyed alike to other ASI washroom equipment. The locked door helps prevent inadvertent dumping and unauthorized removal.
- Four supplied theft- and vandal-resistant rollers have high-impact-resistant plastic bodies and molded-in stainless steel endpins. Internal baffles preserve privacy between stalls.
Partition fit and servicing
The unit measures 17-3/8" W x 20" H x 4-1/4" D. It requires a 15-1/2" W x 18-1/4" H cutout in a 1/2" to 2" thick partition. Install with the supplied #10 x 3/4" self-threading Phillips oval-head screws, with the top of the face trim 34" to 37-5/16" above the finished floor. Unlock and open the door to service both stalls from one side. The manufacturer specifies a one-year warranty from the invoice date.
