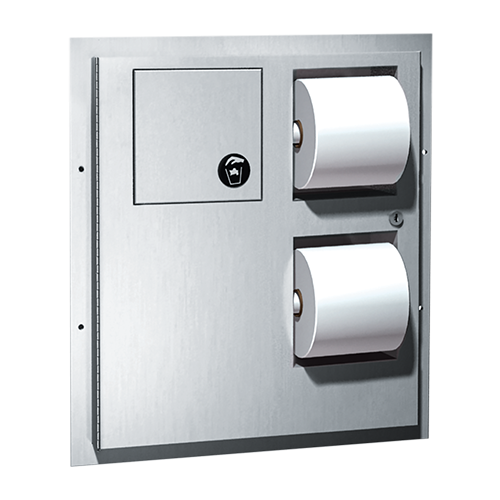

ASI 04813-HC Dual-Access Partition-Mounted Toilet Tissue Dispenser and Napkin Disposal
The ASI 04813-HC mounts through a partition and serves both sides while being serviced from one side. One side mounts flush on the barrier-free compartment side to allow grab-bar clearance.
Capacity, construction, and operation
- Holds four standard or 1,800-sheet toilet tissue rolls, each 4-1/2 inches wide by 5-1/4 inches in diameter. Rolls feed until depleted, and the supply level remains visible as a low-supply warning.
- Includes a removable 1.3-gallon (4.9 L) waste container, emptied manually according to maintenance needs. Its safety-edged finger hole provides a grip for removal.
- Type 304 stainless steel with a satin finish. The waste-disposal and tissue-dispenser doors are 18-gauge; the face frame and cabinet are 22-gauge.
- Two tumbler locks secure the cabinet door and are keyed alike to other ASI washroom equipment. The locked door helps prevent inadvertent dumping and unauthorized removal.
- Four supplied theft- and vandal-resistant rollers (part number R-004) are molded of high-impact-resistant plastic with molded-in stainless steel endpins. A baffle preserves privacy between stalls.
Partition fit and installation
The unit measures 17-3/8 inches W x 20 inches H x 4-1/4 inches D. Provide a partition cutout of 15-1/2 inches W x 18-1/4 inches H for partitions 1/2 to 3-3/4 inches thick. Install with the supplied #10 x 3/4-inch self-threading Phillips oval-head screws. Position the top of the face trim 34 to 37-5/16 inches above the finished floor. Confirm the complete restroom layout and applicable accessibility requirements for the installation. The manufacturer specifies a one-year warranty from the invoice date.
