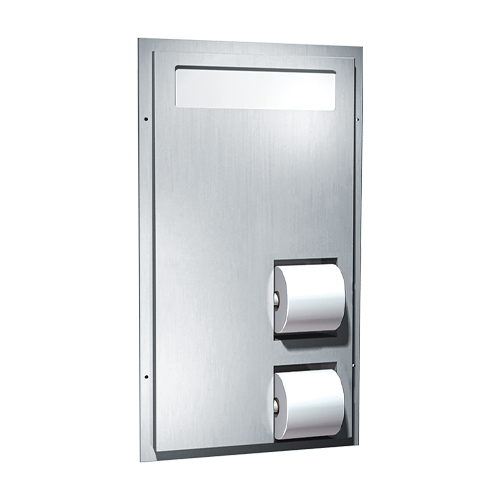

ASI 0484-HCR Reverse Dual-Access Toilet Seat Cover and Toilet Tissue Dispenser

The ASI 0484-HCR is a reverse-configuration, partition-mounted dispenser for accessible restroom compartments. It can be used from both sides, with the toilet tissue dispenser positioned opposite the 0484-HC and the service door on the side opposite the HC stall. One side mounts flush on the barrier-free side to leave clearance for a grab bar; the grab bar is optional and not supplied.

Capacity and construction

• Type 304 stainless steel with a satin finish.
• Holds 1,000 standard single- or half-fold paper toilet seat covers in a supply box.
• Holds four standard or 1,800-sheet toilet paper rolls, each 4-1/2 x 5-1/4 inches.
• Internal baffles prevent a line of sight between stalls. The door has two tumbler locks.
• Four supplied high-impact plastic rollers with molded-in stainless steel endpins help resist theft and vandalism.

Partition fit and servicing

Plan a partition cutout 15-1/2 inches wide by 28-7/8 inches high in a 1/2- to 3-3/4-inch-thick partition; the trim flange adjusts to that thickness range. For the manufacturer's stated ICC/ANSI A117.1 and ADA accessibility installation guidance, the top of the cutout should be 43-3/4 to 50-7/8 inches above finished floor. For CalDAG mounting height, the manufacturer specifies a 42-7/8-inch maximum. Confirm the requirements for your project.

Seat covers feed until depleted, and the visible toilet-paper supply provides a low-level indication. Refill both supplies by unlocking and opening the door opposite the HC stall. ASI 0484-HCR Spec Sheet
