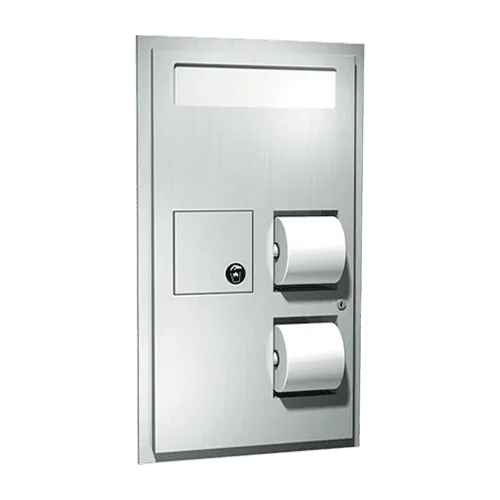

ASI 0482 Recessed Toilet Seat Cover and Tissue Dispenser with Napkin Disposal
This combination unit holds and dispenses up to 1,000 paper seat covers and two standard toilet tissue rolls or two 1,800-sheet rolls measuring 4-1/2 inches by 5-1/4 inches in diameter. Its removable waste container holds 1.3 gallons (4.9 L; 300 in³). The seat-cover panel and tissue dispenser door are 18-gauge Type 304 stainless steel with a satin finish; the face frame and cabinet are 22 gauge. Two theft- and vandal-resistant high-impact plastic rollers with molded-in stainless steel endpins are supplied.
Push the self-closing disposal door to deposit waste. Seat covers feed until depleted; tissue rolls feed freely, and their supply level remains visible. The waste container is emptied manually as maintenance needs dictate. Unlock and open the cabinet door for servicing; a tumbler lock holds it closed.
Recess and installation
Provide a rough wall opening 15-3/4 inches wide by 29 inches high by at least 4 inches deep. Mount in the recess with four #10 self-threading screws (by others). The top of the rough opening is 13/16 inch below the top of the unit. For ADAAG mounting guidance, locate the tissue dispenser centerline 7 to 9 inches from the front of the toilet, with the opening bottom at least 15 inches above the finished floor; locate the seat-cover opening centerline no higher than 48 inches above the finished floor. An optional grab bar is not provided; when used, account for service-door clearance as specified by the manufacturer.
