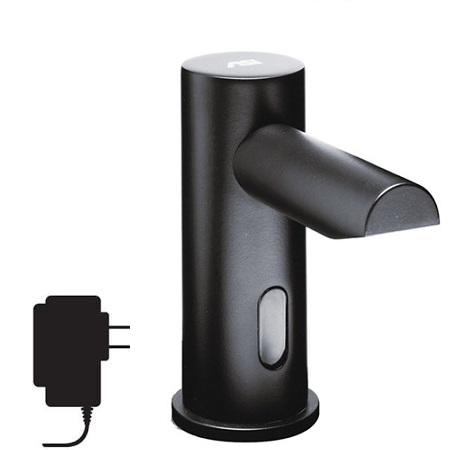

ASI 0393-1AC-41 EZ-Fill Top-Fill Multi-Feed Automatic Foam Soap Dispenser Head
The ASI 0393-1AC-41 is a vanity-mounted, hands-free foam soap dispenser head with a matte black finish and AC adapter operation. It connects to the EZ-Fill top-fill Multi-Feed system; the Multi-Feed kit and tank are purchased separately. One tank can supply up to six dispenser heads.
Specifications
- Model 0393-1AC-41: AC operation, matte black finish.
- Heavy-duty chrome-plated brass construction.
- Sensor activation range: 1-3/16 to 3-15/16 inches (30 to 100 mm), ±3/8 inch (10 mm), directly in front of the spout.
- LED indicates function; it indicates battery condition when operating on batteries.
- Use clear, non-abrasive foaming liquid soap with viscosity of 1–100 cP and pH of 5.5–8.5. Avoid soaps containing reportable salts, chlorides, or alcohols.
- ASI lists a two-year warranty from the invoice date.
Installation and care
Allow space under the vanity for the pump and compressor. Connect the AC adapter to a GFCI outlet under the vanity within 13.5 feet of the pump assembly. Keep the sensor from facing a mirror or other directly facing objects, and do not aim it at the water stream. ASI recommends cleaning the compressor filter every six months. Clean the dispenser surface with soap and water, then wipe dry; keep the soap container clean to help prevent clogging.
ASI 0393-1AC-41 EZ-Fill Foam Soap Dispenser Spec Sheet
ASI EZ-Fill Soap Dispensing System Installation Guide
