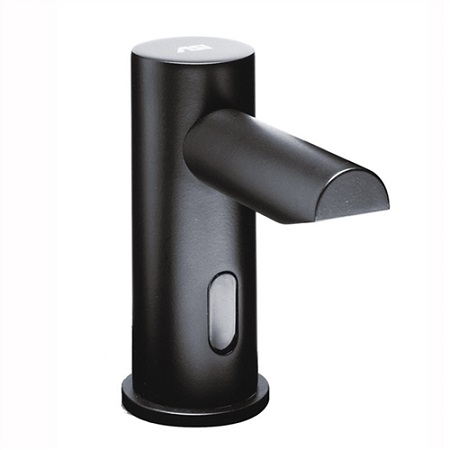

ASI 0393-1A-41 EZ-Fill Top-Fill Multi-Feed Automatic Foam Soap Dispenser Head

The ASI 0393-1A-41 is a vanity-mounted, battery-operated automatic foam soap dispenser head for an EZ-Fill top-fill Multi-Feed system. It draws foam soap from a separately purchased Multi-Feed kit and tank; the system supports up to six dispenser heads.

Specifications

• Power: six D-size alkaline batteries; batteries are not included. ASI advises against rechargeable batteries.
• Operation: hands-free sensor activation; the front LED indicates function and battery condition, with continuous flashing indicating low battery.
• Finish: matte black.
• Soap: clear, non-abrasive foaming liquid with viscosity of 1–100 cP and pH of 5.5–8.5. Avoid soaps containing reportable salts, chlorides, or alcohols.
• Supply: EZ-Fill vanity-mounted top-fill port and Multi-Feed tank; Multi-Feed kit and tank are purchased separately.

Installation and care

Allow under-vanity space for the pump, compressor, and battery box, including clearance to remove the battery carrier for replacement. ASI advises positioning the sensor away from mirrors, other infrared sensors, and the water stream. Clean the compressor filter every six months. For surface cleaning, use soap and water, then wipe dry; keep the soap container clean to help prevent clogging.
