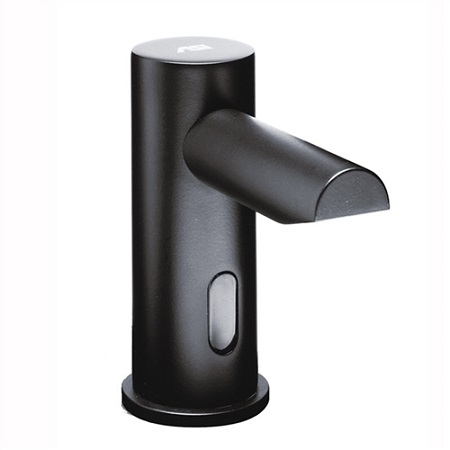

ASI 0393-6-1A-41 EZ-Fill™ Multi-Feed Foam Dispenser Heads, Six-Pack

This six-pack of vanity-mounted, automatic foam soap dispenser heads has a matte black finish and battery operation. One remote control is supplied with the six-pack. The heads draw soap from a separately purchased Multi-Feed tank and kit; the system can supply up to six dispensers from the tank.

The EZ-Fill top-fill arrangement lets staff replenish soap from above the vanity without reaching under it. For installation, plan space beneath the vanity for the system pump and foam compressor, and for the battery box and its service access. Six D-cell batteries are required and are not included. Soap is manually replenished, and batteries are replaced as part of the maintenance schedule. The remote can assist with priming and programming alternate dispense amounts; the pump also has a manual priming button.

Soap requirements

Use foam soap with viscosity of 1–100 cP and pH of 5.5–8.5. The manufacturer advises avoiding soaps containing reportable salts, chlorides, or alcohols.
