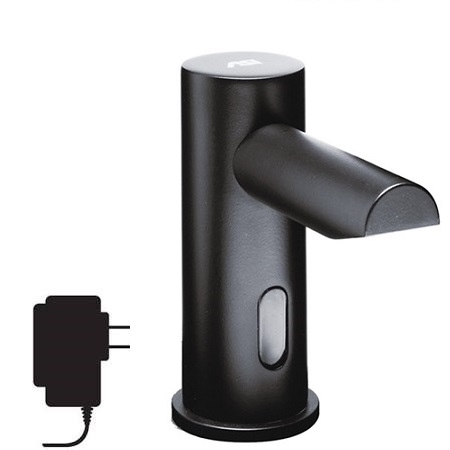

ASI 0390-1AC-41 EZ-Fill™ Soap Dispenser Head

This matte black, hands-free vanity-mounted head is the AC-powered version of ASI’s EZ-Fill top-fill liquid soap system. It is an individual head, not a complete multi-feed system: the Multi-Feed Kit and 5-liter tank are purchased separately. One tank can supply up to six dispenser heads, allowing soap to be refilled from above the vanity rather than underneath it.

Installation and soap requirements

• Plan for a 1-1/8-inch mounting hole and a nearby 5/32-inch hole for the anti-rotation pin. The pump/control housing mounts under the vanity within 24 inches of the shank bottom.
• This AC model requires a GFCI outlet under the vanity within 13.5 feet of the pump/control housing.
• Use liquid soap with viscosity of 100–3,800 cP and pH of 5.5–8.5. The manufacturer advises avoiding soaps containing reportable salts, chlorides, or alcohols.
