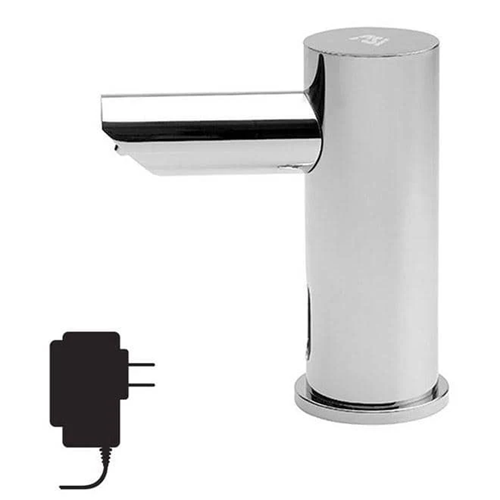

ASI 0390-1AC EZ-Fill Automatic Soap Dispenser Head

The ASI 0390-1AC is an AC-powered, vanity-mounted automatic dispenser head for an EZ-Fill Multi-Feed system. It suits installations with an accessible GFCI outlet under the vanity; the separately purchased Multi-Feed kit and tank are not included. One system can supply up to six dispenser heads, with the shared tank refilled from above the vanity.

Installation and operating requirements

• Install through a 1-1/8" deck hole with an adjacent 5/32" hole for the anti-rotation pin.
• Mount the pump/control housing under the vanity within 24" of the shank bottom.
• For this AC version, the manufacturer specifies a GFCI outlet under the vanity within 13.5 ft of the pump/control housing.
• Use clear, non-abrasive liquid soap with viscosity of 100–3800 cP and pH 5.5–8.5. Avoid soaps containing reportable salts, chlorides, or alcohols.
• The manufacturer specifies 0.03 oz (0.8 ml) per activation. The pump has a manual priming button for initial setup or when soap needs to be brought back to the spout.

Top filling lets staff replenish the Multi-Feed tank without reaching under the vanity. Consult the installation guide for complete setup and maintenance instructions.
