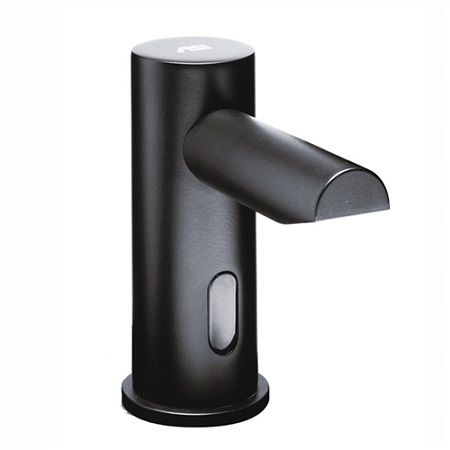

ASI 0391-6-1A-41 EZ-Fill Stand-Alone Automatic Soap Dispensers
This six-pack includes individual, vanity-mounted, hands-free liquid soap dispensers in a matte black finish. Each dispenser uses a translucent 33.8 oz (1 L) bottle. The battery-powered configuration requires six D-size 1.5 V batteries per dispenser; batteries are supplied by others. One remote control is supplied per six-pack.
Specifications and soap requirements
- Six individual automatic dispensers; 1 L translucent bottle for each dispenser.
- Matte black finish, identified by the manufacturer model suffix -41.
- The front LED indicates operation and battery condition.
- Standard dispense amount: 0.03 oz (0.8 ml) per activation. The remote can program alternate amounts and assist with priming.
- Use clear, non-abrasive liquid soap with viscosity of 100–3,800 cP and pH 5.5–8.5. Avoid soaps containing reportable salts, chlorides, or alcohols.
Installation, refilling and care
Plan for a 1-1/8 in. mounting hole and an adjacent 5/32 in. hole for the anti-rotation pin. Mount the pump/control housing and bottle support under the vanity within 24 in. of the shank bottom. Refill the bottle manually and prime with the pump fill button or remote until soap dispenses. Clean the surface with soap and water, then wipe dry; avoid alcohol-, acid-, and abrasive-containing cleaners. The manufacturer specifies a two-year warranty from the invoice date.
ASI 0391-6-1A-41 EZ-Fill Soap Dispenser Spec Sheet
ASI EZ-Fill Soap Dispensing System Installation Guide
