ASI 0394-6-1A-41 EZ-Fill Stand-Alone Automatic Foam Soap Dispensers

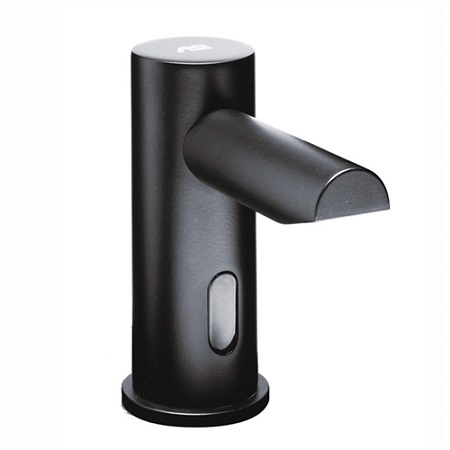

This six-pack contains six individual, vanity-mounted automatic foam soap dispensers, each with its own translucent 33.8 oz (1 L) bottle. The battery-operated dispensers have a matte black finish; one remote control is included with the six-pack. This stand-alone configuration uses individual bottles rather than a shared Multi-Feed tank.

Configuration and soap requirements

• Six individual dispensers, each with a 1 L bottle.
• Each dispenser uses six D-size batteries; batteries are not included.
• The included remote can program alternate dispense amounts and assist with priming.
• Use clear, non-abrasive foaming liquid soap with viscosity of 1–100 cP and pH of 5.5–8.5. Avoid soaps containing reportable salts, chlorides, or alcohols.
• The sensor activates when an object is within 1-3/16 to 3-15/16 in. of the spout. The LED indicates sensing and can flash continuously to indicate low battery.

For installation, allow space under each vanity for the pump, compressor, and bottle support. Mount the pump within 24 in. of the compressor's L-fitting. Avoid aiming the sensor at a mirror or another infrared-operated device; ASI recommends at least 6 in. between the sensor and directly facing objects. Refill each bottle manually and prime using the pump's fill button or the remote. The manufacturer lists a two-year warranty from the invoice date.
