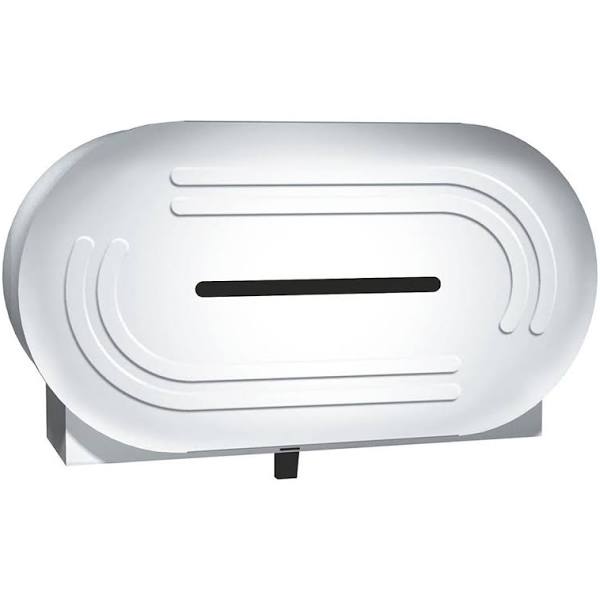

ASI-0039 Low Profile 9" Jumbo-Roll Toilet Tissue Dispenser
This surface-mounted dispenser holds two rolls up to 9" (229 mm) in diameter, with 3" (76 mm) or 2-1/4" (57 mm) cores. For smaller-core rolls, remove the core adapters. When a roll is depleted, shift the lever at the bottom to select the other roll; the unit resets to the first roll when opened for maintenance. A viewing slot shows tissue level.
The cabinet, door and mounting plate are 18-gauge Type 304 stainless steel with a satin finish. The door has heavy-duty stainless steel pivot hinges and a tumbler lock keyed to other ASI washroom equipment.
Mounting and placement
Surface-mount with five screws through the provided holes; screws are by others. The manufacturer's general-utility guidance places the unit within 12" (305 mm) of the toilet front, measured from the centerline, with the bottom of the unit 31" (787 mm) above the finished floor. Its 2010 ADA installation guidance places the nearest roll centerline no farther than 7"–9" (178–229 mm) from the front of the commode and the roll centerlines 19" (483 mm) minimum to 44" (1118 mm) maximum above the finished floor. Confirm placement against project requirements.
