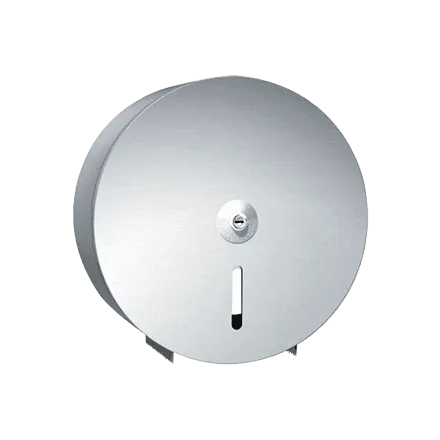

ASI 0042 Single Jumbo Roll Toilet Tissue Dispenser
This surface-mounted dispenser holds one roll up to 10 inches in diameter. It fits a 2-1/4-inch core with the two removable rubber core-adapter rings in place, or a 1-5/8-inch core with the rings removed. The 22-gauge Type 304 stainless steel cover has a satin finish, viewing slot, and tumbler lock. Dimensions: 10-5/8 inches wide by 10-5/8 inches high by 4-1/2 inches deep.
Mounting and placement
For general utility, the manufacturer specifies placement within 12 inches of the toilet front from the toilet centerline, with the bottom of the unit 31 inches above the finished floor. Mount with five screws through the provided holes; screws are by others. The manufacturer also gives separate 2010 ADA/ABA placement dimensions: dispenser centerline 7 to 9 inches in front of the toilet, and dispenser outlet 15 to 48 inches above the finished floor. Confirm the placement requirements for your project.
The viewing slot reveals the tissue level. The key-locked cover provides access for roll replacement, on a cycle determined by maintenance needs.
