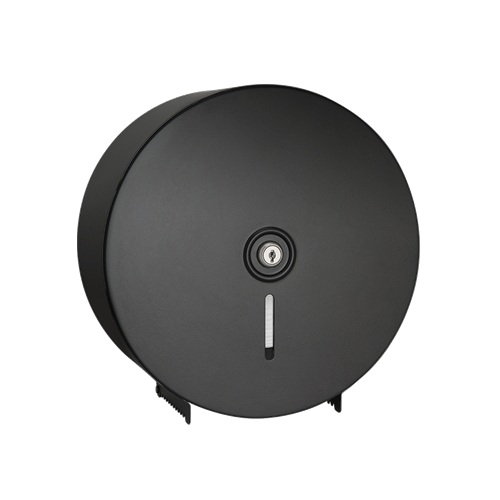

ASI 0042-41 Round Single Jumbo Roll Toilet Tissue Dispenser
The ASI 0042-41 is a surface-mounted, round dispenser for one jumbo toilet tissue roll up to 10" (254 mm) in diameter. Its Type 304 stainless steel outer cover has a matte black powder-coated finish; a viewing slot shows the remaining tissue, and a tumbler lock secures the cover.
Specifications and use
- Roll and core: Holds one roll with a 2-1/4" (57 mm) core adapter installed; remove the rubber core-adapter rings to use a 1-5/8" (41 mm) core.
- Dimensions: 10-5/8" W x 10-5/8" H x 4-1/2" D.
- Mounting: Surface mounts with five screws through the provided mounting holes; screws are by others.
- Refilling: The cover is key-locked. The viewing slot reveals tissue level, and the roll is replaced according to maintenance needs.
- Manufacturer warranty: One year from invoice date.
Installation guidance
For general utility installation, the manufacturer specifies mounting within 12" of the toilet front from the dispenser centerline and 31" above finished floor measured from the bottom of the unit. The manufacturer's guidance for installation intended to meet the cited 2010 ADA Accessibility Standards and 2015 ABA Standards specifies the dispenser centerline 7"–9" in front of the toilet and the outlet 15"–48" above finished floor; this guidance is not a blanket compliance determination.
