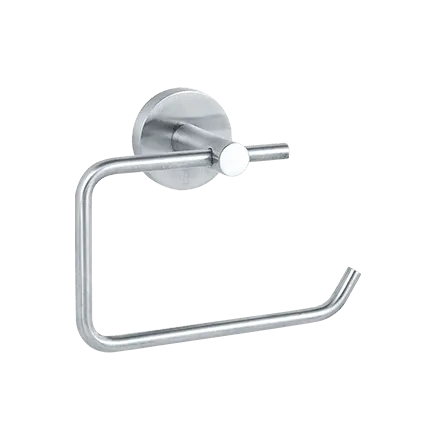

ASI 7314 Single Toilet Tissue Roll Holder
The ASI 7314 is a surface-mounted, single-roll holder for one standard-core toilet paper roll up to 5 inches in diameter. Its reversible bail swings freely for use and roll replacement and provides unrestricted paper feed.
Specifications
- Exposed surfaces: Type 304 stainless steel with a satin finish; mounting cup is 19 gauge.
- Dimensions: 5-3/16 inches wide by 3-3/8 inches high by 2-3/16 inches deep.
Installation and placement
Mount the cup to the finished wall using the two provided #6 x 1-1/2-inch pan-head self-threading screws and plastic wall anchors, or other suitable mounting hardware for the wall conditions. Clip the flange onto the cup and tighten the provided setscrew. The manufacturer recommends a general mounting height of 32 inches above finished floor. For installation following the manufacturer's guidance for the 2010 ADA Accessibility Standards, place the top of the holder 19 to 48 inches above finished floor and the post centerline 7 to 9 inches from the front of the commode.
