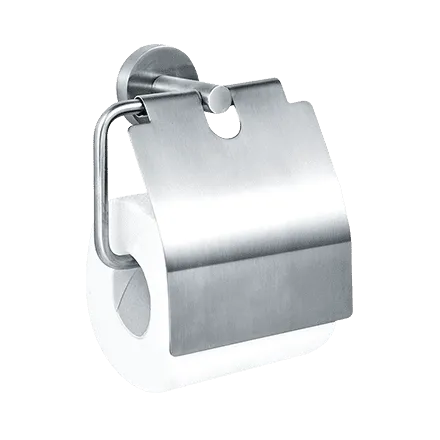

ASI 7314-H Hooded Single Toilet Tissue Roll Holder
The ASI 7314-H is a surface-mounted, satin-finish Type 304 stainless steel holder for one standard-core toilet paper roll up to 5 inches in diameter. Its bail-type holder provides unrestricted feed, and the paper bar is reversible to change handing. The roll is easy to replace. The weighted hood swings independently of the bail to aid tearing and protect the roll from inadvertent contamination.
Specifications
- Dimensions: 5-43/64 inches wide x 4-3/4 inches high x 3-7/8 inches deep.
- Construction: 20-gauge Type 304 stainless steel tubular post and 19-gauge mounting cup.
- Capacity: one standard-core roll up to 5 inches in diameter.
Installation
Two #6 x 1-1/2-inch mounting screws, plastic wall anchors, and a hex key are provided. Use other suitable mounting hardware if needed for the wall conditions. Secure the unit to its wall bracket with the provided set screw. The manufacturer recommends a general mounting height of 32 inches above the finished floor. Its installation guidance for the 2010 ADA Accessibility Standards specifies positioning the top of the holder 19 to 48 inches above the finished floor and the post centerline 7 to 9 inches from the front of the commode.
