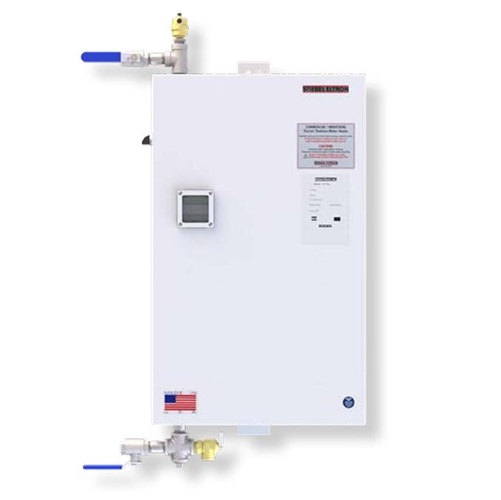

Stiebel Eltron CF Plus 60 kW (480V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CF Plus 60 kW (480V Delta) is a high-capacity, industrial-grade thermal powerhouse designed for the most rigorous hot water demands. As a flagship model in the elite "Hot Start" series, this unit features a specialized internal heat maintenance system that guarantees immediate hot water delivery. By effectively eliminating startup lag and the "cold water sandwich" effect, the CF-Plus-060-480D is the premier solution for large-scale circulation loops, high-volume multi-fixture stations, and mission-critical industrial processes where thermal consistency is non-negotiable.
Performance & Electrical Specifications
Engineered specifically for 480V 3-phase Delta electrical configurations, this model delivers massive heating capacity with industrial-grade efficiency.
- Power Output: 60.00 kW at 480V.
- Amperage: 72.17 Amps.
- Breaker Requirement: 80A (3-Pole).
- Temperature Rise: Capable of an incredible 410°F rise at 1 gpm and a robust 205°F rise at 2 gpm.
- Activation Rate: Reliable activation at 0.7 gpm, ensuring seamless operation even with modern, water-saving commercial fixtures.
- Max Flow Rate: High-capacity internal engineering supports demanding flow requirements up to 10.6 gpm at 60 psi.
Engineering & Durability
- 316L Stainless Steel Heat Exchanger: Constructed with a premium 316L stainless steel heat exchanger, offering the highest level of resistance to corrosion, thermal stress, and mineral scaling in aggressive industrial environments.
- Advanced Microprocessor Modulation: Features electronic closed-loop controls that monitor inlet/outlet sensors and flow rates in real-time. This intelligent modulation ensures the unit consumes only the exact energy required, maximizing efficiency compared to traditional tank systems.
- Industrial Protection: Comes standard in a NEMA 3 enclosure for superior protection. For specialized environments, NEMA 4 and 4X options are available to support wash-down or highly corrosive atmosphere requirements.
- Comprehensive Safety: Equipped with four levels of over-temperature protection, an integrated automatic air vent, and a lead-free brass pressure relief valve.
- Precision Control: Temperature setpoints are factory-calibrated but fully user-adjustable between 60°F and 180°F to meet specific building codes or industrial process needs.
Compliance & Quality Assurance
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Warranty: Protected by a 6-year leakage warranty and a 2-year warranty on parts and materials.
- Origin: Proudly manufactured in the USA.
Buy at the best price or request a professional volume quote for your industrial facility today. Shop online at ProDryers or call our experts to secure the Stiebel Eltron CF-Plus-060-480 for your high-demand project.
Download the C Series Commercial Options List
