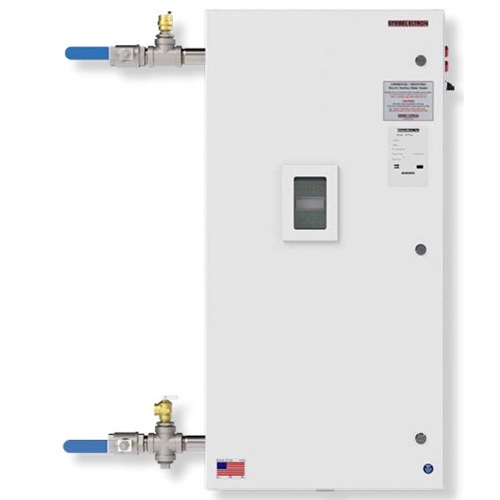

Stiebel Eltron CF Plus 144 kW (480V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CF Plus 144 kW (480V Delta) represents the absolute masterclass in high-capacity electric water heating. Engineered for the most demanding 480V 3-phase Delta industrial grids, this unit is designed to provide a massive, uninterrupted supply of hot water for large-scale commercial and industrial applications. As the flagship powerhouse of the elite "Hot Start" series, the CF-Plus-144-480D utilizes a specialized internal heat maintenance system that ensures instantaneous delivery. By eliminating startup lag and the "cold water sandwich" effect, this unit is the definitive solution for high-flow circulation loops, massive multi-fixture handwashing stations, and mission-critical industrial processes where thermal precision is mandatory.
Performance & Electrical Specifications
Optimized for high-voltage industrial environments, this model utilizes sophisticated microprocessor modulation to manage its immense power output with surgical precision.
- Power Output: 144.00 kW at 480V.
- Amperage: 173.21 Amps.
- Breaker Requirement: 200A (3-Pole).
- Temperature Rise: Delivers a staggering 98°F rise at 10 gpm and a robust 49°F rise at 20 gpm.
- Activation Rate: Reliable activation at 2.7 gpm (for DN 25 flowmeter models), allowing for seamless integration into high-demand commercial plumbing systems.
- Max Flow Rate: High-capacity internal engineering supports extreme flow requirements up to 40 gpm at 60 psi.
Engineering & Durability
- 316L Stainless Steel Heat Exchanger: Built with a premium 316L stainless steel heat exchanger and internal piping, offering the highest level of resistance to corrosion, thermal stress, and mineral scaling in aggressive industrial environments.
- Precision Microprocessor Modulation: Features advanced electronic closed-loop controls that monitor flow and temperature sensors in real-time. This intelligent modulation ensures only the necessary energy is used, providing significantly greater efficiency than traditional storage tank heaters.
- Industrial Protection: Comes standard in a NEMA 3 enclosure. For specialized industrial environments, NEMA 4 and 4X options are available for wash-down or highly corrosive areas.
- Integrated Safety Systems: Equipped with multiple levels of over-temperature protection, an integrated automatic air vent, and a lead-free brass pressure relief valve.
- Adjustable Temperature Control: Setpoints are factory-calibrated but fully user-adjustable from 60°F to 180°F (16°C to 82°C) to accommodate specific building codes or industrial requirements.
Compliance & Quality Assurance
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Warranty: Supported by a 6-year leakage warranty and a 2-year warranty on parts and materials.
- Origin: Proudly manufactured in the USA.
Buy at the best price or request a professional volume quote for your industrial facility today. Shop online at ProDryers or call our experts to secure the Stiebel Eltron CF-Plus-144-480 for your highest-capacity commercial projects.
Download the C Series Commercial Options List
