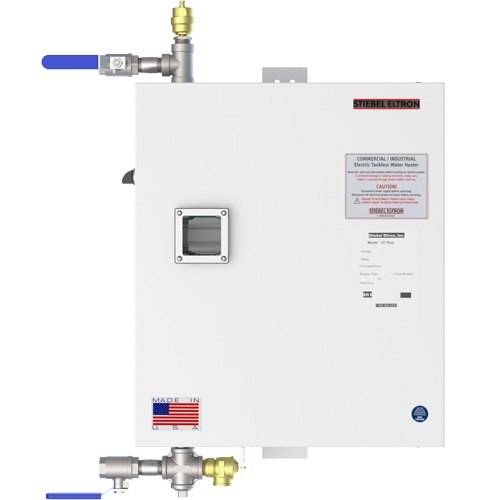

Stiebel Eltron CF Plus 27 kW (208V) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CF Plus 27 kW (208V) is a high-capacity, industrial-grade 3-phase electric tankless water heater engineered for the most demanding commercial environments. As a cornerstone of the "Hot Start" series, this unit is equipped with a specialized internal heat maintenance system that guarantees immediate hot water delivery. By effectively eliminating the startup lag and the "cold water sandwich" effect, the CF-Plus-027-208 is the premier choice for high-frequency use, large-scale circulation loops, and industrial processes where thermal consistency is critical.
Performance & Electrical Specifications
Specifically configured for 208V 3-phase Delta electrical systems, this model provides massive heating power managed by high-precision electronic modulation.
- Power Output: 27.04 kW at 208V.
- Amperage: 75.06 Amps.
- Breaker Requirement: 80A (3-Pole).
- Temperature Rise: Delivers a powerful 92°F rise at 2 gpm and a 62°F rise at 3 gpm.
- Activation Rate: Reliable activation at 0.7 gpm, allowing for seamless integration with low-flow commercial fixtures.
- Max Flow Rate: Robust internal design capable of managing up to 10.6 gpm at 60 psi.
Engineering & Durability
- 316L Stainless Steel Heat Exchanger: Constructed with a premium 316L stainless steel heat exchanger, providing elite-level resistance to corrosion, mineral scaling, and thermal stress.

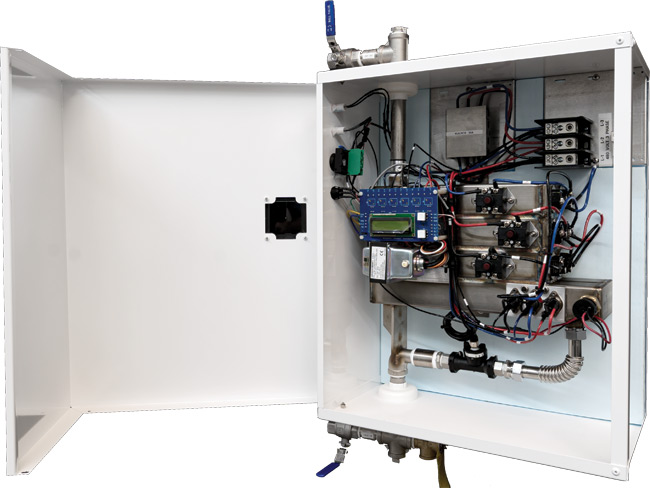

- Advanced Microprocessor Modulation: Features electronic closed-loop controls that monitor flow and temperature sensors in real-time. This intelligent modulation ensures only the necessary energy is used, providing up to 20% greater efficiency than traditional tank-style heaters.
- Industrial Protection: Standardized with a NEMA 3 enclosure for high-tier protection. For specialized environments, NEMA 4 and 4X options are available for wash-down or highly corrosive areas.
- Integrated Safety: Features four levels of over-temperature protection, an integrated automatic air vent, and a lead-free brass pressure relief valve.
- Adjustable Precision: Setpoints are factory-calibrated but fully user-adjustable from 60°F to 180°F to meet specific facility requirements.
Compliance & Quality Assurance
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Warranty: Supported by a 6-year leakage warranty and a 2-year warranty on parts and materials.
- Origin: Proudly manufactured in the USA.
Buy at the best price or request a professional volume quote for your facility today. Shop online at ProDryers or call our experts to secure the Stiebel Eltron CF-Plus-027-208 for your commercial project.
Download the C Series Commercial Options List
