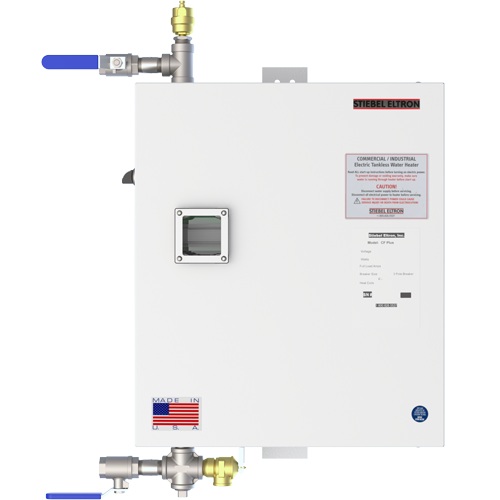

Stiebel Eltron CF Plus 12 kW (208V) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CF Plus 12 kW (208V) is a high-performance, 3-phase electric tankless water heater designed for immediate "Hot Start" delivery in demanding commercial environments. By maintaining internal heat, it eliminates startup delays and provides up to 20% energy savings over traditional tanks by removing standby heat loss.
Technical Specifications
- Power Output: 11.27 kW at 208V 3-Phase.
- Amperage/Breaker: 31.27 Amps with a 35A breaker requirement.
- Temperature Rise: Provides a 77°F rise at 1 gpm and 39°F at 2 gpm.
- Activation: Ultra-low 0.7 gpm activation for consistent performance.
- Setpoints: Factory programmed from 60–180°F and fully user-adjustable.
Engineering & Durability
- Construction: Features a rugged 316L stainless steel heat exchanger and a NEMA 3 enclosure (NEMA 4/4X available).
- Safety: Equipped with a lead-free brass pressure relief valve and an integrated air vent.
- Control: Electronic closed-loop control monitors flow and temperature to activate only the necessary heating elements.
- Dimensions: The cabinet measures 24-15/32" W x 30-1/32" H x 11-5/32" D.
Compliance & Warranty
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Warranty: 6-year leakage warranty and 2-year warranty on materials and workmanship.
- Origin: Manufactured in the USA.
For the best pricing or to request a quote on the Stiebel Eltron CF-Plus-012-208, shop online at ProDryers or call today for expert assistance.
Download the C Series Commercial Options List
