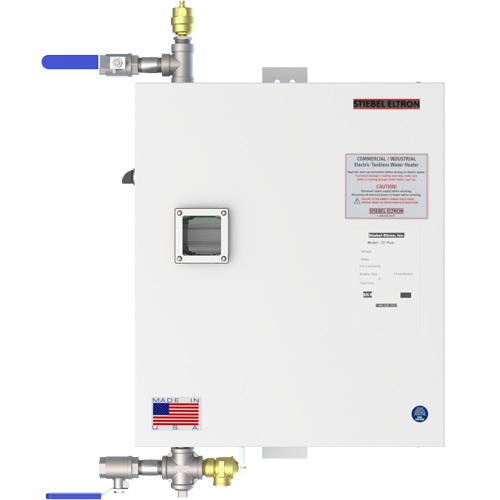

Stiebel Eltron CF Plus 15 kW (208V) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CF Plus 15 kW (208V) is an industrial-grade, 3-phase electric tankless water heater engineered for high-demand commercial applications. As a "Hot Start" model, it features an internal reservoir that maintains heated water to ensure immediate delivery and eliminate the cold-water lag typically associated with tankless systems. This specialized engineering makes it an ideal solution for circulation systems and boiler replacements where consistent, instantaneous hot water is a critical requirement.
Technical Specifications
- Power Output: 15.77 kW at 208V 3-Phase Delta.
- Amperage/Breaker: 43.78 Amps with a 50A 3-pole breaker requirement.
- Temperature Rise: Provides a significant 54°F rise at 2 gpm and a 36°F rise at 3 gpm.
- Activation Rate: Reliable activation at a low 0.7 gpm for consistent performance.
- Temperature Control: Setpoints are factory programmed and user-adjustable from 60°F to 180°F.
Engineering & Construction
- Materials: Constructed with a high-durability 316L stainless steel heat exchanger for long-term corrosion resistance.
- Safety Systems: Includes four levels of over-temperature protection and a pressure switch for dry-fire protection.
- Precision Operation: An advanced electronic controller monitors flow rates and temperature to activate only the necessary heating elements, reducing energy costs by up to 20% compared to traditional tanks.
- Enclosure: Features a rugged NEMA 3 enclosure with hinged access for easy service; NEMA 4 and 4X options are available for extreme environments.
- Dimensions: The cabinet measures 24-15/32" W x 30-1/32" H x 11-5/32" D.
Compliance & Warranty
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Warranty: Protected by a 6-year warranty against leakage and a 2-year warranty on materials and workmanship.
- Origin: Proudly made in the USA.
