Stiebel Eltron CF Plus 12 kW (480V Wye) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CF Plus 12 kW (480V) is a high-efficiency, 3-phase electric tankless water heater engineered for precision and reliability in demanding commercial and industrial environments. As part of the "Hot Start" series, this unit maintains internal heat to ensure immediate hot water delivery, effectively eliminating the startup delays often associated with tankless technology. By operating only when demand is detected, it reduces energy consumption by approximately 20% compared to traditional tank heaters.
Technical Specifications
- Power Output: 13.50 kW at 480V 3-Phase Wye.
- Amperage/Breaker: 16.24 Amps with a 20A 3-pole breaker requirement.
- Temperature Rise: Delivers a 92°F rise at 1 gpm and a 46°F rise at 2 gpm.
- Activation Rate: Reliable activation at a low 0.7 gpm.
- Temperature Control: Factory programmed and user-adjustable from 60°F to 180°F.
Engineering & Construction
- Materials: Features a robust 316L stainless steel heat exchanger for maximum durability and corrosion resistance.
- Safety Features: Equipped with a lead-free brass pressure relief valve, an integrated air vent, and four levels of over-temperature protection.
- Enclosure: Housed in a NEMA 3 enclosure for high-tier protection, with NEMA 4/4X options available for specialized environments.

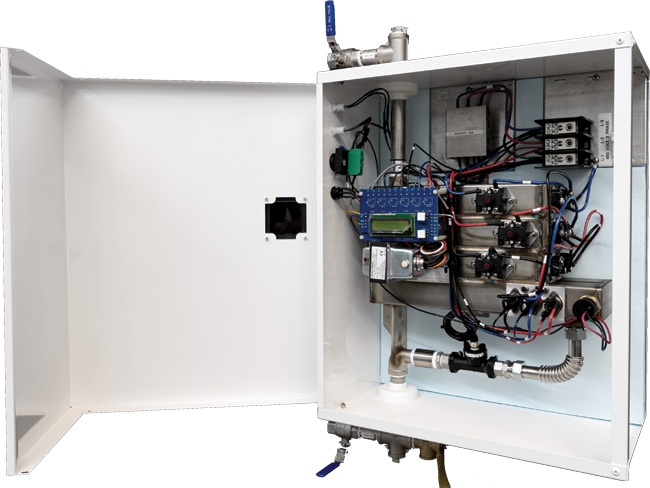

- Intelligent Operation: A sophisticated electronic controller monitors flow rates and inlet/outlet temperatures to activate only the necessary heating elements.
- Dimensions: The cabinet measures 24-15/32" W x 30-1/32" H x 11-5/32" D.
Compliance & Warranty
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Warranty: Protected by a 6-year warranty against leakage and a 2-year warranty on materials and workmanship.
- Origin: Proudly made in the USA.
For the best pricing or to request a volume quote on the Stiebel Eltron CF-Plus-012-480Y, shop online at ProDryers or call today for expert assistance with your project.
Download the C Series Commercial Options List
