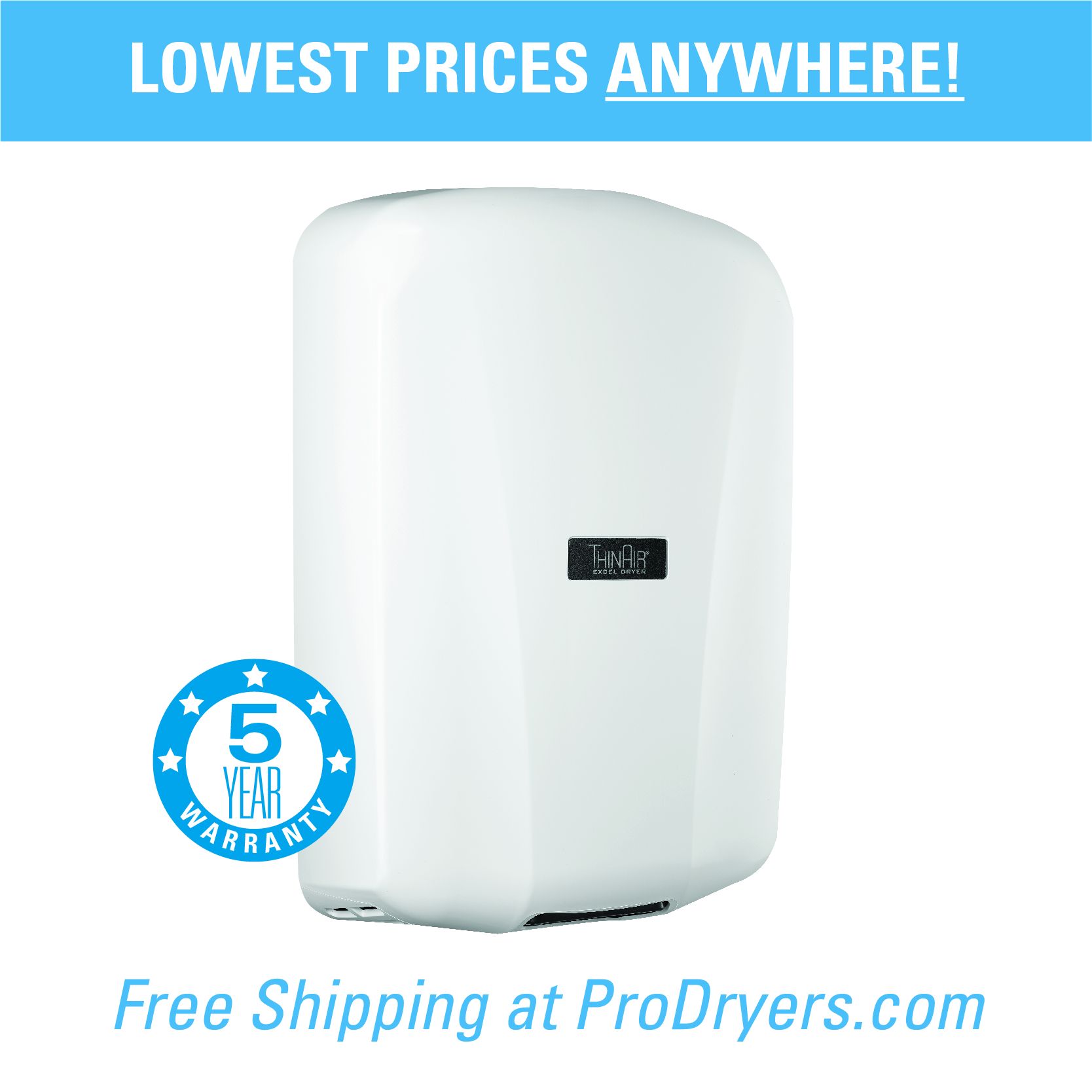

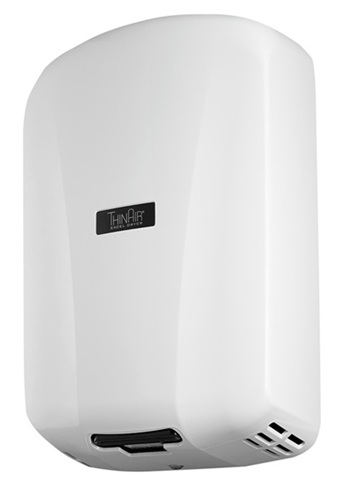

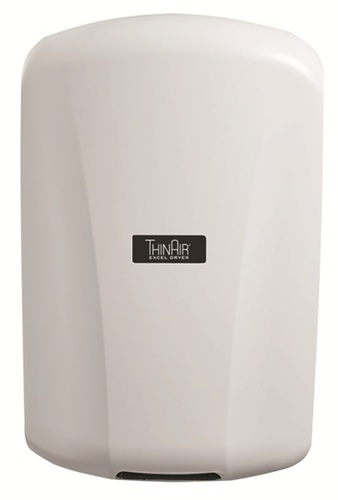

Excel Dryer TA-W ThinAir ADA Compliant Hand Dryer
Always get the absolute best price on the Excel Dryer TA-W ThinAir Hand Dryer at ProDryers. We are a top trusted national, master distributor for Excel Dryer. The new TA-W ThinAir is a great addition to the Excel Dryer family expanding the industry standard Xlerator name with a new thin designed high speed hand dryer that satisfies ADA depth requirements as a surface mount unit. The ThinAir requires nothing more than a simple wall mount installation eliminating the older methods of recessing hand dryers into the wall to achieve ADA compliance. As an informational resource, read more on the differences of handicap accessible vs. ADA compliance with hand dryers. The Xlerator hand dryer is still the #1 selling and #1 suggested Excel Dryer product. However, if ADA compliance is a requirement, the new TA-W ThinAir is the perfect solution! ADA guidelines state that fixtures mounted above 27" must not protrude more than 4" from the wall.
Features:
- 15 second dry time (based on third party testing performed by SGS International on standard Thin Air hand dryer to 0.2g or less of residual moisture)
- Wattage: 960 Watts w/ heat; as low as 333 Watts (without heat)
- 5 year warranty from Excel Dryer; a top trusted manufacturer in the U.S.A.
- Adjustable speed and sound to fit even quiet operational requirements
- On/Off heat option
- Washable pre-filter
- Meets 4" ADA protrusion guidelines to accommodate the visually impaired
- Automatic sensor activated
- Surface mounted (wall mounted) and still ADA compliant
- 110-120 volt uses 8 amp, 208-240 uses 4 amp (if you require the 230 volt, 50 Hz option for export, please call us at 888-503-7937)
Dimensions:
Width: 9 5/32" (233 mm) Height: 13 15/16" (354 mm) Depth: 4" (102 mm)
Spec Sheet Downloads:
Spec Sheet
Technical Data Sheet
Expert Insight
Why We Recommend the Excel Dryer TA-W ThinAir
The Excel Dryer TA-W ThinAir provides high-speed hand drying in a slim cabinet with a durable white epoxy finish. We often recommend this model when a commercial restroom must address ADA wall-projection requirements without cutting into the wall for a recessed installation. Its 4-inch depth, approximately 15-second dry time, selectable heat, adjustable speed and sound, washable pre-filter, and touch-free sensor offer practical performance in a clean, versatile design.
Best Applications

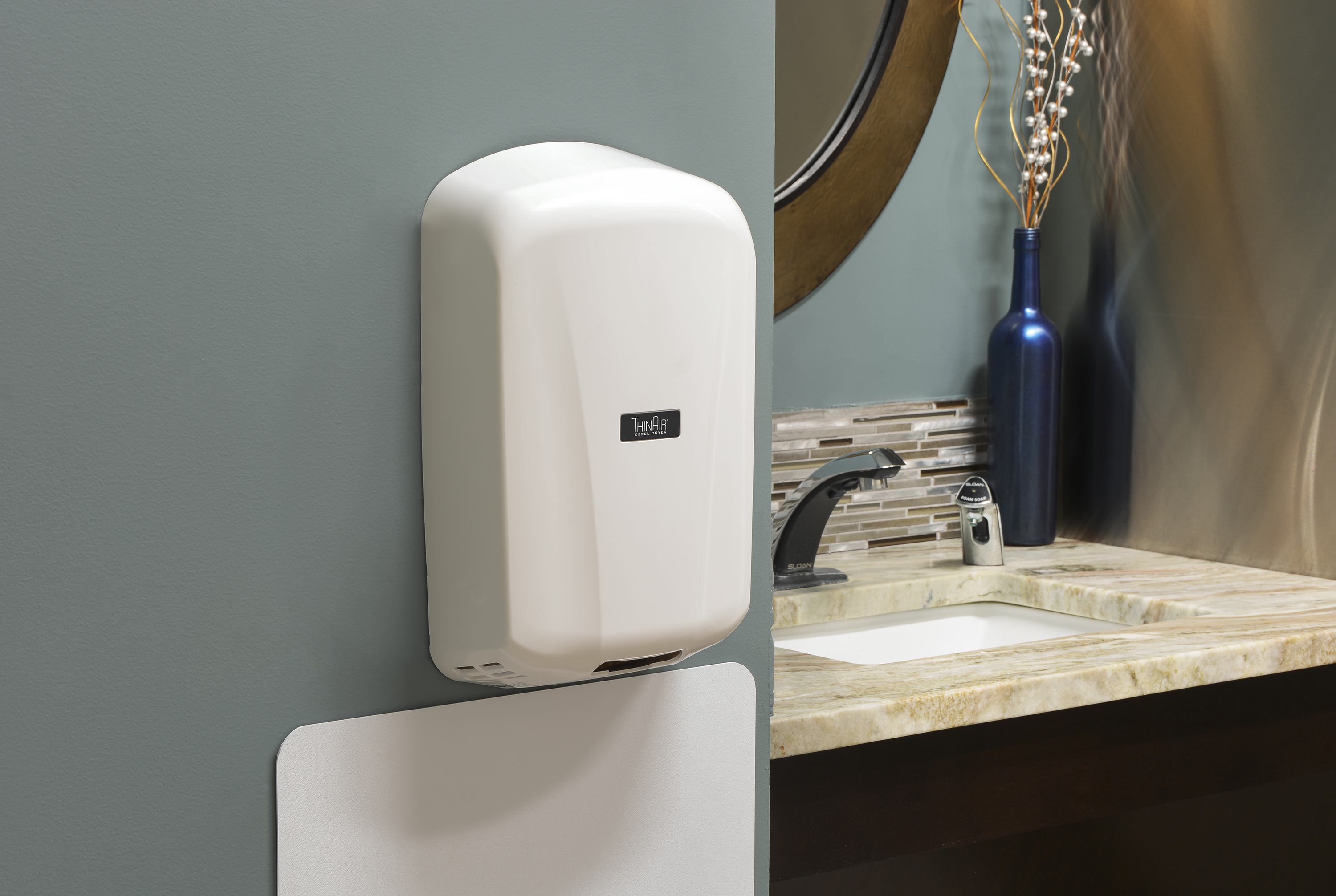

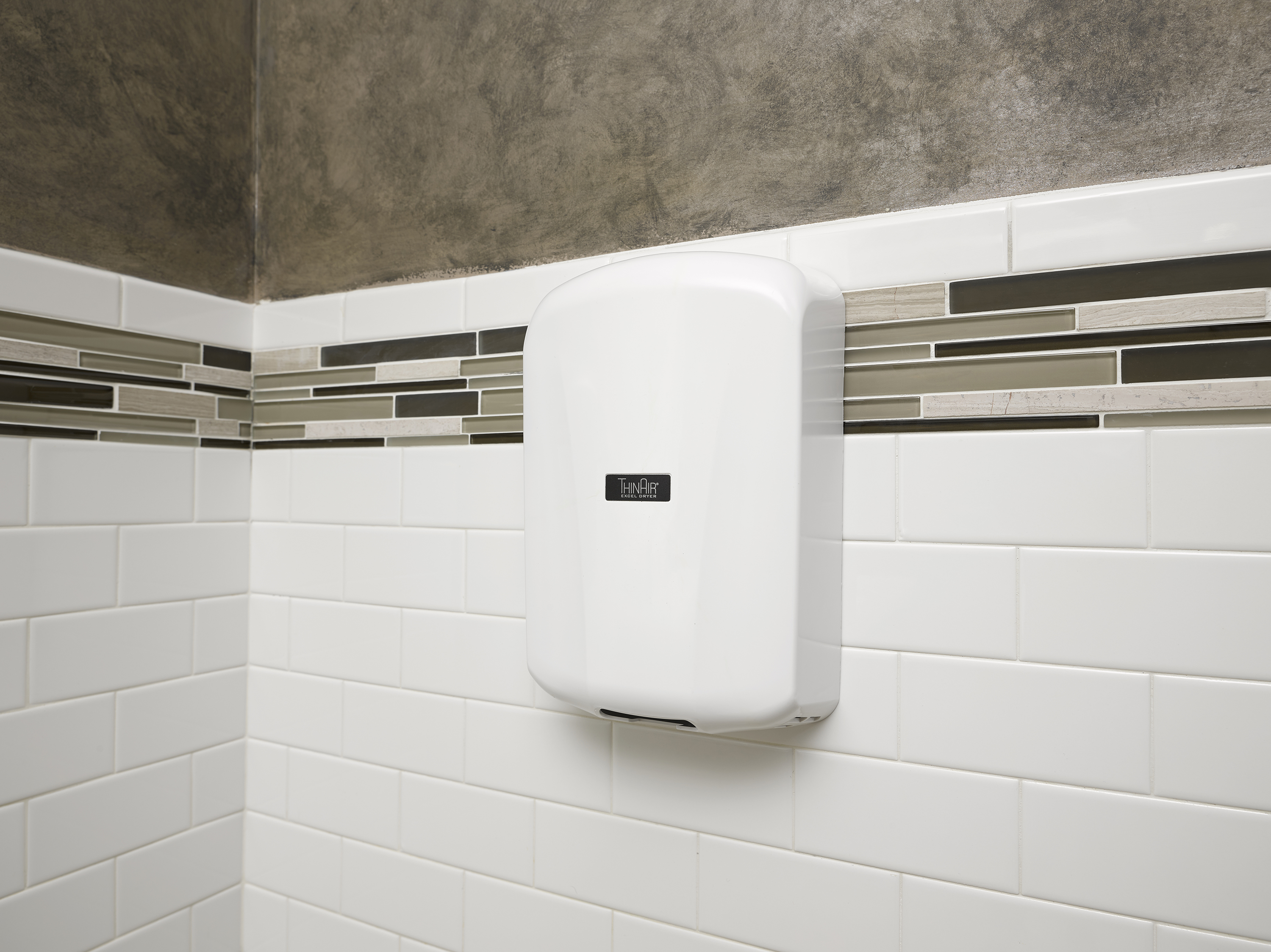

The TA-W ThinAir is well suited for schools, offices, healthcare buildings, restaurants, hotels, libraries, government facilities, and renovation projects where recessed installation is impractical. Its neutral white finish coordinates easily with many commercial interiors, while the adjustable operating settings help balance drying performance, user comfort, sound, and energy consumption.
Quick Tip
Confirm the building voltage and electrical circuit before ordering. The 110–120V model draws approximately 8 amps, while the 208–240V model draws approximately 4 amps. Projects requiring a 230V, 50 Hz export configuration should verify availability and electrical compatibility before installation.
Common Question
How does the TA-W ThinAir differ from the XLERATOR XL-W?
The TA-W has a shallow 4-inch cabinet designed to satisfy ADA protrusion guidelines when surface mounted and provides an approximately 15-second dry time. The XL-W projects approximately 6-11/16 inches from the wall and may require a recess kit where the 4-inch rule applies, but it provides a faster approximately 8-second dry time. Choose the ThinAir when shallow projection and simpler ADA planning are the main priorities.
