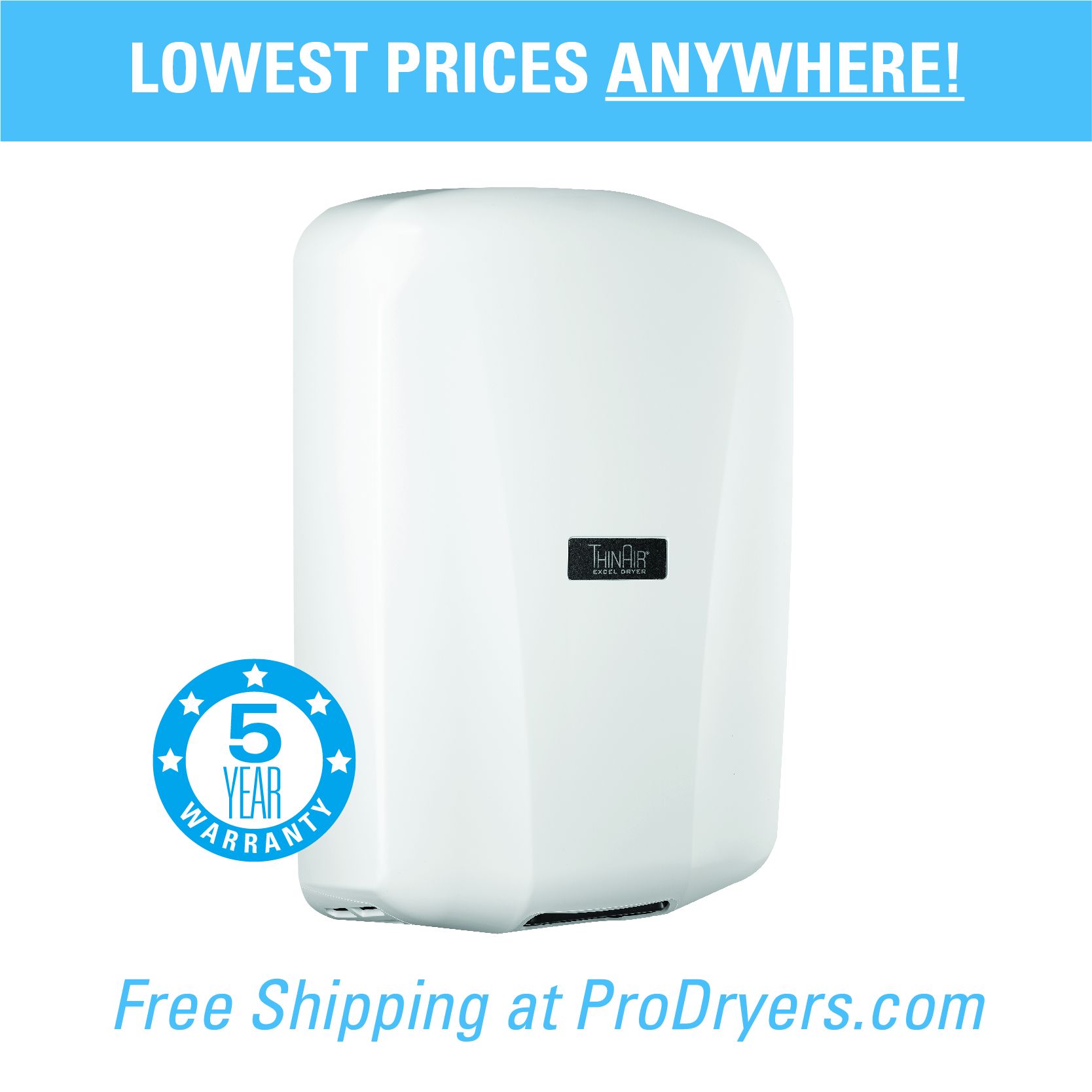

Excel Dryer TA-ABS ThinAir ADA Compliant Hand Dryer
Always get the absolute best price on the Excel Dryer TA-ABS ThinAir Hand Dryer at ProDryers. We are a top trusted national, master distributor for Excel Dryer. The new TA-ABS ThinAir is a great addition to the Excel Dryer family expanding the industry standard Xlerator name with a new thin designed high speed hand dryer that satisfies ADA depth requirements as a surface mount unit. The ThinAir requires nothing more than a simple wall mount installation eliminating the older methods of recessing hand dryers into the wall to achieve ADA compliance. As an informational resource, read more on the differences of handicap accessible vs. ADA compliance with hand dryers. The Xlerator hand dryer is still the #1 selling and #1 suggested Excel Dryer product. However, if ADA compliance is a requirement, the new TA-ABS ThinAir is the perfect solution! ADA guidelines state that fixtures mounted above 27" must not protrude more than 4" from the wall.
Features:
- 15 second dry time (based on third party testing performed by SGS International on standard Thin Air hand dryer to 0.2g or less of residual moisture)
- Wattage: 960 Watts w/ heat; as low as 333 Watts (without heat)
- 5 year warranty from Excel Dryer; a top trusted manufacturer in the U.S.A.
- Adjustable speed and sound to fit even quiet operational requirements
- On/Off heat option
- Washable pre-filter
- Meets 4” ADA protrusion guidelines to accommodate the visually impaired
- Automatic sensor activated

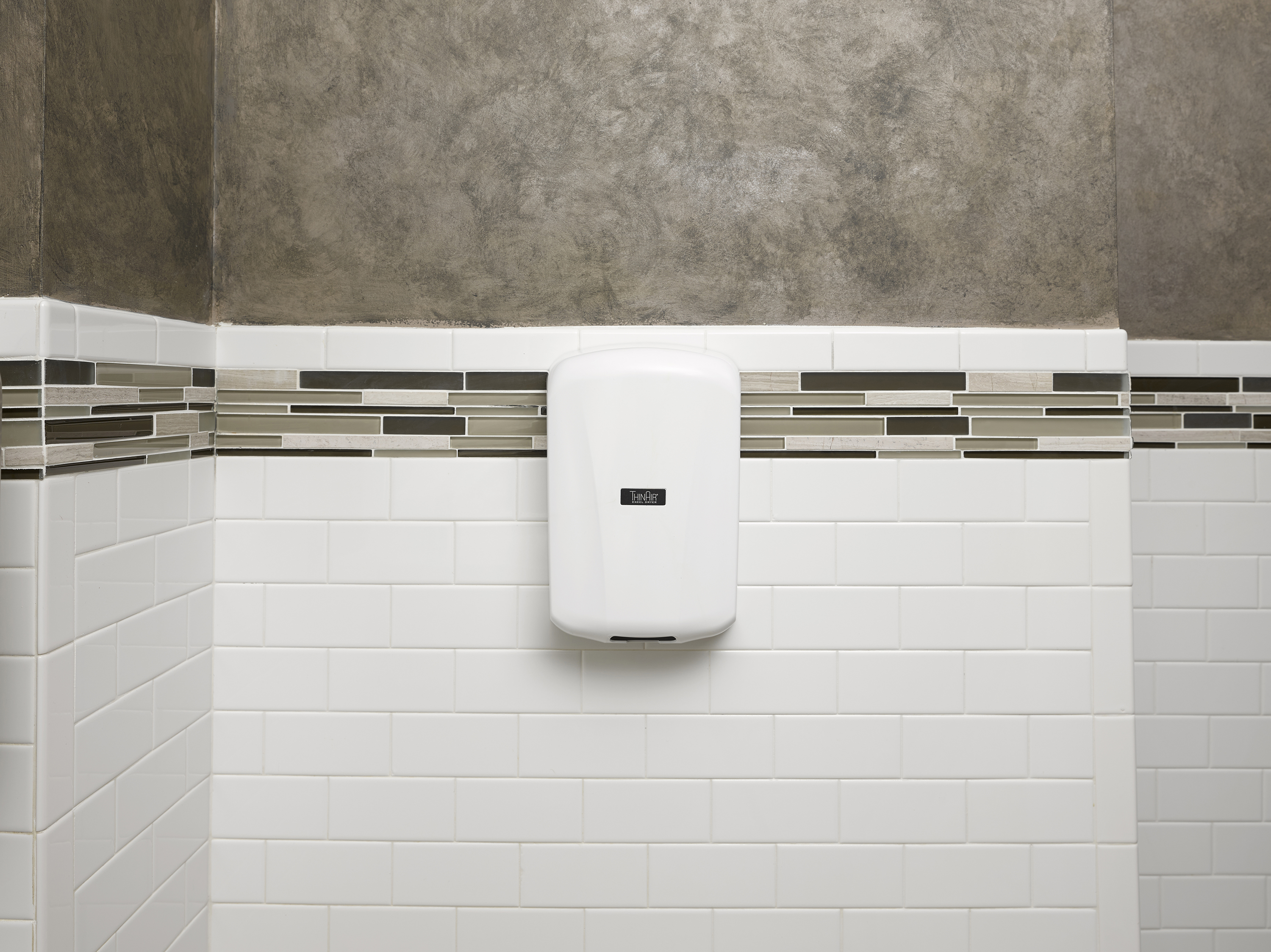

- Surface mounted (wall mounted) and still ADA compliant
- 110-120 volt uses 8 amp, 208-240 uses 4 amp (if you require the 230 volt, 50 Hz option for export, please call us at 888-503-7937)
Dimensions:
Width: 9 5/32" (233 mm) Height: 13 15/16" (354 mm) Depth: 4" (102 mm)
Spec Sheet Downloads:
Spec Sheet
Technical Data Sheet
Expert Insight
Why We Recommend the Excel Dryer TA-ABS ThinAir
The Excel Dryer TA-ABS ThinAir provides high-speed hand drying in a slim, surface-mounted design that projects only 4 inches from the wall. We often recommend this model when ADA protrusion requirements must be addressed without cutting into the wall for a recessed installation. Its approximately 15-second dry time, adjustable speed and sound controls, selectable heat, and automatic sensor activation make it adaptable to a wide range of commercial restrooms.
Best Applications
The TA-ABS ThinAir is well suited for schools, offices, healthcare buildings, restaurants, hotels, libraries, government facilities, and renovation projects where available wall depth makes recessing a dryer difficult. Its adjustable operating settings are particularly useful in restrooms where sound level, energy consumption, or user comfort must be balanced with drying performance.
Quick Tip
Set the speed, sound, and heating options during installation based on the restroom environment. Turning the heat off can reduce power consumption from approximately 960 watts to as little as 333 watts, while lower-speed settings may be preferable for quieter spaces. Confirm the selected voltage, electrical circuit, mounting height, reach range, and surrounding clearances before installation.
Common Question
Does the TA-ABS ThinAir require a recess kit for ADA compliance?
No. Its 4-inch-deep cabinet is designed to satisfy ADA protrusion guidelines as a surface-mounted hand dryer, eliminating the need for a recess kit solely to reduce projection. The complete installation must still follow applicable requirements for mounting height, reach range, clear floor space, electrical work, and placement along the circulation path.
