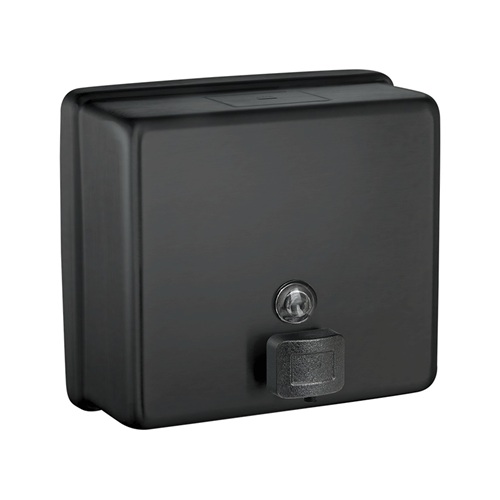

ASI 9343-41 Profile Surface-Mounted Liquid Soap Dispenser
The ASI 9343-41 is a 48 fl. oz. (1.4 L) matte black, surface-mounted dispenser for liquid, lotion, and detergent-type soaps. Its Type 304 stainless steel construction and tamper-resistant refill window distinguish this Profile model; use only soap within the specified viscosity and pH ranges.
Specifications and soap requirements
- Capacity: 48 fl. oz. (1.4 L); manually dispensed by pressing the all-purpose valve.
- Construction: 16-gauge stainless steel face, Type 304 stainless steel with matte black powder coating, and curved edges.
- Soap range: viscosity 100–3,500 mPa·s (cP) and pH 5.5–8.0. Avoid soaps containing reportable salts, chlorides, or alcohols.
- Dimensions: 7-1/4" x 6-1/2" x 3-11/16" (184 x 165 x 94 mm); spout projection is 15/16" (24 mm).
- Refill access: vandal-resistant hinged filler top with tamper-resistant window and concealed fastening; a special key is supplied.
Mounting, use, and refilling
Mount the wall plate to the wall or partition with screws, then secure the dispenser to the plate with the locking screw through the tamper-resistant refill door. ASI's installation guidance recommends locating the valve at 54" (1372 mm) maximum above finished floor for clear-floor side reach, 48" (1219 mm) maximum for clear-floor forward reach, or 46" (1168 mm) maximum for side reach over an obstruction. For general utility, the manufacturer recommends 42" (1066 mm) above finished floor or at least 6" (152 mm) above the wash basin.
Open the hinged top with the supplied key to refill. The tank continues feeding until empty, so replenish it according to maintenance needs. Manufacturer warranty: one year from invoice date.
