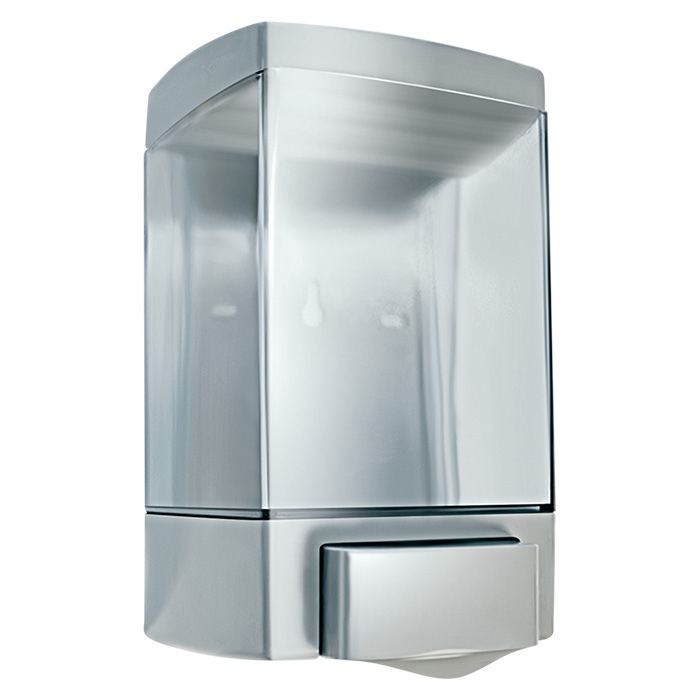

ASI 0340 Surface-Mounted Liquid and Antiseptic Soap Dispenser
The ASI 0340 is a 46 oz surface-mounted dispenser for liquid and antiseptic soaps, shampoos, lotions, or detergents. Its transparent smoked-gray tank makes the soap level visible, while the push bar and tamper-resistant top cover support manual dispensing and refill.
Key specifications
- Capacity: 46 oz (1.36 L); dimensions: 5-5/16 × 8-3/16 × 4-1/4 inches (135 × 208 × 108 mm).
- Impact-resistant ABS body with transparent smoked-gray tank and opaque-gray base, push bar, and cover.
- For products with viscosity of 100–3,500 cP and pH of 5.5–8.5. Avoid soaps containing reportable salts, chlorides, or alcohols; the unit does not dispense abrasive liquids such as pumice.
- Sloped cover with overlapping edges discourages use as a shelf and helps keep water spray out. Concealed valve has stainless-steel and plastic internal parts.
- Manufacturer specifies actuation requiring no more than 5 lbf (22.2 N), without grasping or twisting.
Installation and refill
Mount to a wall or partition with the supplied bracket and two adhesive-tape strips, or use mounting hardware (by others). The unit locks onto the concealed bracket with a concealed snap latch. For general utility, the manufacturer recommends mounting the bottom 42 inches above the finished floor. The manufacturer's installation guidance for the 2010 ADA Accessibility Standards is to place the valve-button centerline no higher than 48 inches above the finished floor; this is installation guidance, not a blanket compliance determination.
Dispense by depressing the push bar. Refill through the tamper-resistant top cover. The tank feeds until empty, and its clear construction lets staff monitor the soap level and replenish it according to maintenance needs.
