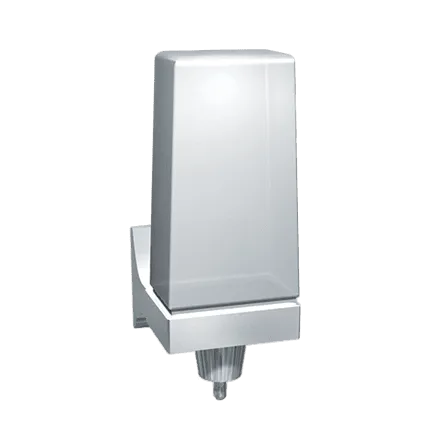

ASI 0356 Liquid Soap Dispenser, Push-Up Type, Surface Mounted
The ASI 0356 is a manually operated, surface-mounted liquid soap dispenser with a 24 oz (0.71 L) translucent polyethylene container. Its corrosion-resistant ABS valve and stainless steel spring dispense suitable soaps, detergents, or thin lotions.
Specifications and soap requirements
- Capacity: 24 oz (0.71 L); container: translucent polyethylene.
- Construction: chrome-plated ABS mounting bracket and corrosion-resistant ABS valve with stainless steel spring.
- Dimensions: 4 x 7-5/8 x 4-1/8 in. (102 x 194 x 105 mm).
- Soap viscosity range: 150–3,000 mPa·s (cP); pH range: 5.0–9.0.
- Avoid soaps containing reportable salts, chlorides, or alcohols.
Installation, operation, and care
Secure the bracket to a wall or partition with the four supplied #10 pan-head self-threading screws. Manufacturer installation guidance specifies 42 in. (1066 mm) above finished floor for general utility, or at least 8 in. (203 mm) above a countertop. It also specifies a maximum bottom-of-unit height of 48 in. (1219 mm) above finished floor in its guidance for the 2010 ADA Accessibility Standards.
Push up against the valve to dispense a measured amount of soap. To refill, unscrew the base collar and remove the container; replenish the supply manually as needed. The manufacturer lists a one-year warranty from the invoice date. For cleaning guidance, consult the manufacturer’s soap dispenser care and maintenance document.
