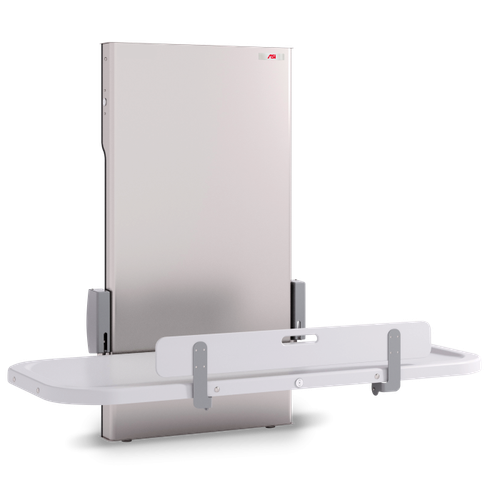

ASI 9060 Universal Changing Station
The ASI Model 9060 Universal Changing Station is a surface-mounted, motorized, height-adjustable changing table designed to support accessible, inclusive, and dignified public restroom environments. Featuring a spacious 76″ changing surface that meets IBC requirements, the ASI 9060 provides a safe, comfortable solution for individuals with disabilities requiring assisted care.
As regulatory mandates and recommendations for adult changing stations expand across the US, this commercial-grade fixture offers high-performance accessibility for airports, healthcare facilities, educational institutions, and high-traffic public venues.
Product Specifications
- Weight Capacity: 500 lbs. (227 kg) static load capacity
- Height Adjustment Range: 16" MIN to 39" MAX
- Dimensions (Closed): 77-1/16" L × 9-19/32" D × 68-61/64" H
- Dimensions (Open): 77-1/16" L × 40-23/32" D × 68-61/64" H
- Electrical Requirements: 120 VAC, 20 A, 50/60 Hz (Requires GFCI protection)
- Certifications: UL 962 & CSA 22.2 No. 68 certified
- Warranty: Five (5) Years from date of invoice
Key Features & Technical Highlights
- Motorized Height Adjustment: Direct-attached actuator provides smooth vertical travel from a low transfer height of 16" up to 39", reducing strain on caregivers and optimizing user safety.
- Dual Control Buttons: Easy-to-reach operation buttons are located on both the front of the tray and the side of the wall module for effortless height adjustments.
- Obstruction-Sensing Safety: An integrated auto-retracting feature detects obstacles during movement, automatically stopping and reversing direction to prevent injury or equipment damage.
- Battery Backup Included: Equipped with a backup battery system to guarantee full motor operation during emergency power outages.
- Durable Commercial Construction: Built with a satin-finished Type 304 stainless steel wall module cover, a powder-coated cold-rolled steel structural lifting frame, and an easy-to-clean, thermoformed ABS plastic contoured surface.
- Integrated Safety Guard Rail: Hinged metal guard rail utilizes a secure plunger-locking mechanism to protect users during height adjustments and care procedures.
- Surface-Mounted Engineering: Designed for mounting flexibility onto existing wall structures, utilizing floor-leveling feet and secure wall anchoring.
Operation & Installation Guidelines
- Simple Operation: Unfold the tray from its upright, closed position and lower it using the control buttons. Once the individual is transferred, engage the hinged safety guard by pulling the right-side metal plunger, swinging the rail into position, and clicking it into place. Adjust the height as needed for care, and reverse the process to safely unload and store.
- Installation Requirements: Level the lifting mechanism using the adjustable feet and attach it to structural wall studs or backing using eight (8) 1/4" × 3" screws. Where wall studs are unavailable, secure with 1/4"-20 × 3" toggle bolts into toggle or expansion nuts. Plug the system directly into a dedicated 120V 20A GFCI outlet or circuit before completing cover assembly.
