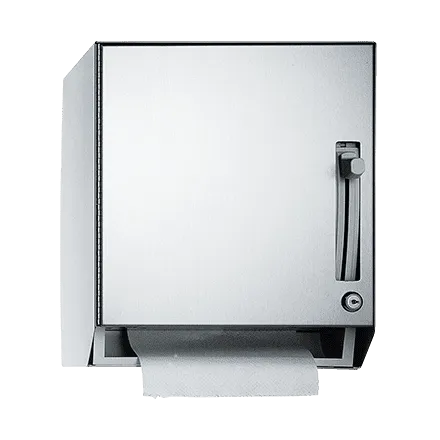

ASI 8522 Lever-Type Roll Paper Towel Dispenser
The ASI 8522 is a surface-mounted manual dispenser for 8- or 9-inch-wide roll towels up to 800 feet long. Its lever dispenses a preset towel length per cycle, adjustable by the owner for economy.
Specifications and operation
- Type 304 stainless steel with a satin finish.
- Dimensions: 14 inches wide x 16 inches high x 9-1/2 inches deep.
- The owner can adjust feed length using the supplied pin to limit lever stroke.
- Towels feed by lever until the supply is depleted. Loading a full roll while a partial roll remains allows the full roll to start automatically when the partial roll is finished.
- A locking door prevents unauthorized access or removal.
Mounting guidance
Surface-mount the unit to the wall using #10 fasteners (by others) through the concealed mounting holes. ASI's installation guidance for the 2010 ADA Accessibility Standards specifies installing the dispenser so the top of the lever is no more than 48 inches above the finished floor.
