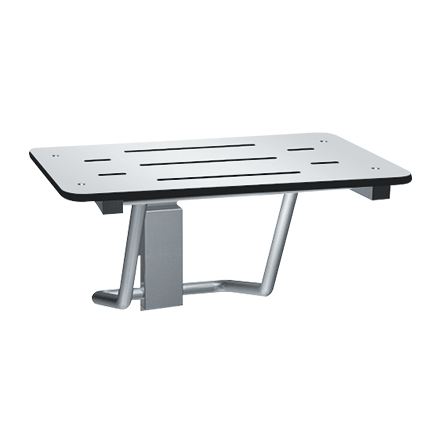

ASI 8203-28 Folding Shower Seat, Rectangular Solid Phenolic
The ASI 8203-28 is a surface-mounted folding shower seat with a 28-inch overall width, a white slotted solid-phenolic seat, and a Type 304 stainless steel frame. The seat folds up when not in use and lowers manually with one hand; slots allow water to drain.
Product details
- Seat: One-piece, 5/16-inch-thick solid phenolic with a semi-gloss white laminate on the top and bottom, black edges, and three drainage slots.
- Frame: Type 304 satin-finished stainless steel frame, support legs, flanges, and bracket.
- Dimensions: The unit is 28 inches wide and 15-7/8 inches deep overall. The seat is 14-1/2 inches deep; its depth is not the full wall projection.
- Operation: Lowers to the use position and folds up manually with one hand. A guide bracket with spring detent supports the seat in use and holds it in the stored position.
- Load capacity: Supports up to 500 lb when properly installed.
Installation
This seat is surface mounted. Provide a concealed anchor plate or wall blocking before finishing the wall; anchors and mounting hardware are not supplied. Fasten the flanges and guide bracket to the concealed support with appropriate hardware, and ensure the mounting configuration complies with local building codes. The manufacturer identifies this model as ADA compliant; verify installation conditions and project requirements.
