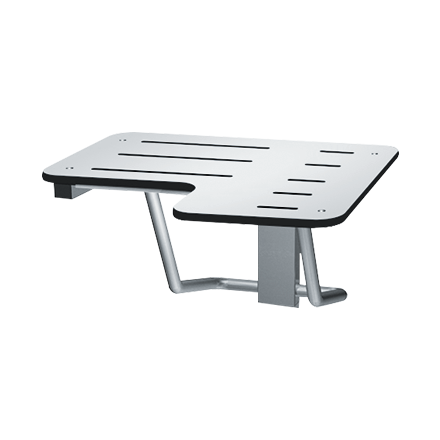

ASI 8206-L-28 L-Shaped Folding Shower Seat
The ASI 8206-L-28 is the left-hand configuration of ASI’s 28-inch-wide L-shaped phenolic fold-up shower seat for shower stalls. Its white, slotted seat folds up against the wall when not in use; the manufacturer specifies a satin-finish Type 304 stainless steel frame.
Key specifications
- Seat: 1/2 inch thick solid phenolic, with semi-gloss white top and bottom, black edges, and drainage slots.
- Size: 28 inches wide and projects 21 inches from the wall.
- Frame, legs, flanges, and guide bracket: Type 304 stainless steel with satin-finish exposed surfaces.
- The guide bracket and spring detent control lowering and hold the seat in its use and folded storage positions; operation is manual and one-handed.
- The manufacturer states the unit is load rated for 500 lb at the front edge when properly installed.
Installation and handedness
This is a surface-mounted seat. Provide concealed anchor plate or blocking before wall finishing; mounting plates, anchors, and hardware are not supplied and must be specified separately. The manufacturer says the unit is field reversible for left- or right-hand installation. Proper mounting and appropriately sized fasteners are critical to the stated load rating. The manufacturer states the unit satisfies 2010 ADA Accessibility Standards when mounted properly; installation must also follow applicable local building codes.
