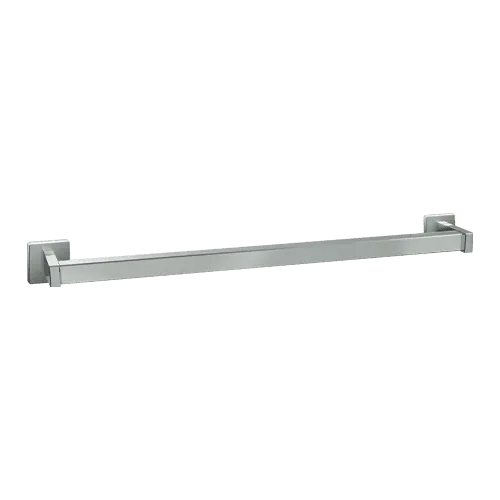

ASI 7360-30S Square Towel Bar, 30-Inch, Satin Finish
The ASI 7360-30S is a 30-inch, surface-mounted square towel bar made of Type 304 stainless steel with a satin finish. Its 3/4-inch (19 mm) square rod projects 3-1/4 inches from the wall.
Specifications
- Length: 30 inches; the 7360-S series is also available in 18- and 24-inch lengths.
- Rod: 3/4-inch (19 mm) square stainless steel.
- Material and finish: Type 304 stainless steel, satin finish. The -B option denotes bright finish.
- Mounting: Surface mounted; projection: 3-1/4 inches.
Installation
Use #10 self-threading screws through the mounting plates into suitable prepared mountings, or other suitable hardware selected for the wall conditions. Screws and mounting hardware are by others. Hang the post and flange assemblies on the plates with the bar captured, then tighten the setscrews. For accessibility installations, ASI specifies maximum rod heights of 48, 46, or 44 inches above finished floor (AFF), depending on reach conditions; consult the spec sheet for the conditions associated with each height. For general utility, ASI lists 55 inches AFF to the mounting-plate centerline.
Care
Clean regularly with a soft cloth and mild detergent, then wipe with water and dry. Avoid muriatic acid, caustic or abrasive materials, and harsh detergents outside pH 7 ± 1.5.
