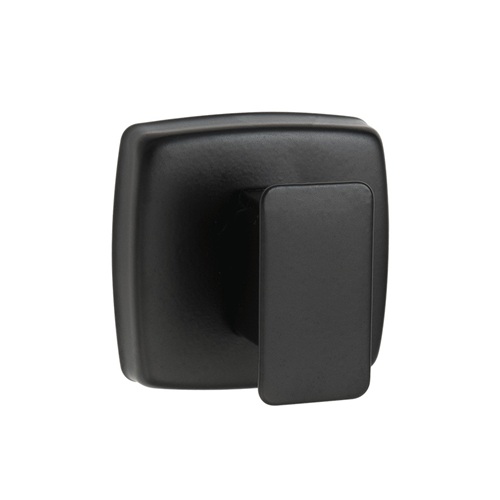

ASI 7340-41 Single Robe Hook, Matte Black
This single surface-mounted hook is made of Type 304 stainless steel with a matte black powder-coated finish. It projects 2 inches (51 mm) from the wall and is suitable for a robe, clothing, or small carry bags. Overall dimensions are 2 inches wide by 2 inches high by 2 inches deep.
Installation
Mount the plate to a door back or wall using two #10 self-threading screws through the provided holes. Screws and suitable prepared mountings or other mounting hardware are by others. Hang the post and flange assembly on the plate, then tighten the set screw to lock it in place.
For general utility, install with the mounting-plate centerline 68 inches above the finished floor. For the manufacturer’s accessibility installation guidance, the top of the hook is 48 inches maximum above the finished floor; the maximum is 46 inches for the specified side-reach condition over an obstruction, or 44 inches for the specified forward-reach condition over an obstruction. Refer to the spec sheet for the reach-condition details.
