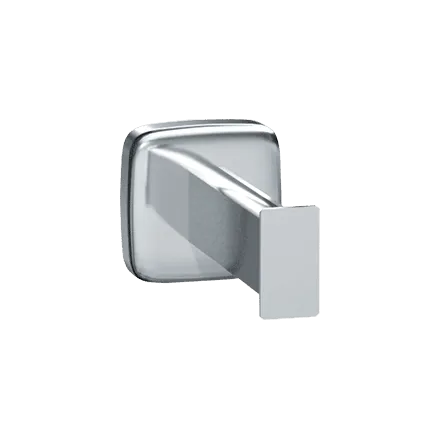

ASI 7301-S Satin-Finish Surface-Mounted Towel Pin
The ASI 7301-S is a Type 304 stainless steel towel pin for surface mounting on a door or wall. It has a satin finish, distinct from the bright-finish 7301-B, and projects 3-1/2 inches (89 mm) from the wall.
Specifications
- Material and finish: Type 304 stainless steel, satin finish
- Mounting: Surface mounted; 18-gauge mounting plate
- Overall dimensions: 2 inches (51 mm) wide × 2 inches (51 mm) high × 3-1/2 inches (89 mm) deep
Installation and placement
Mount on a door or wall using #10 self-threading screws through the mounting plate into suitable prepared mountings. Screws and suitable mounting hardware are by others and must suit the mounting conditions. Hang the post and flange assembly on the plate, then tighten the setscrew to lock it in place. For the manufacturer’s stated ICC/ANSI A117.1-2003 and 2010 ADA Accessibility Standards installation guidance, place the top of the pin no higher than 48 inches (1219 mm) above finished floor. For general utility, the manufacturer specifies a mounting-plate centerline of 55–68 inches (1397–1727 mm) above finished floor; these are installation guidelines, not a blanket compliance determination.
Care and warranty
For regular care, clean with a soft cloth and mild detergent, wipe with a water-moistened cloth, then dry. Avoid muriatic acid, caustic or abrasive materials, and harsh detergents outside pH 7 ± 1.5. The manufacturer lists a one-year warranty from the invoice date.
