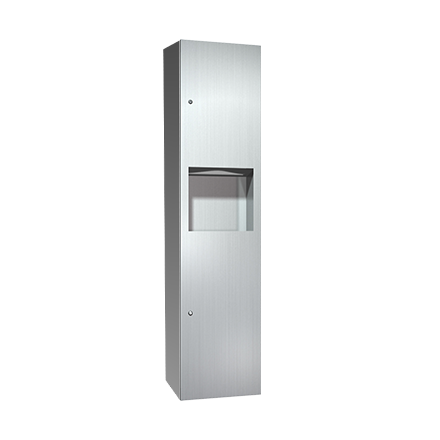

ASI 6467-9 Simplicity Surface-Mounted Paper Towel Dispenser and Waste Receptacle
The ASI 6467-9 is a surface-mounted combination unit with a stainless steel collar, dispensing 600 C-fold or 800 multi-fold towels and collecting waste in a 4.2-gallon stainless steel receptacle.
Capacity and construction
- Towel capacity: 600 C-fold or 800 multi-fold towels; towels are manually withdrawn through the dispensing slot.
- Waste capacity: 4.2 gallons (16 L); removable receptacle has a rolled-edge finger hole for servicing.
- Type 304 stainless steel with satin finish; 18-gauge door and 20-gauge cabinet.
- Overall dimensions: 13 inches W × 55 inches H × 4-3/4 inches D.
- Full-face door secures both compartments with two tumbler locks.
Mounting and servicing
Surface-mount the unit using four #10 self-threading screws (by others) through the cabinet-back mounting holes. The -9 stainless steel collar is installed on the cabinet before wall mounting. Manufacturer installation guidance for the 2010 ADA Accessibility Standards specifies a towel-outlet centerline no higher than 48 inches above the finished floor; for general utility, the manufacturer recommends a bottom-edge height of 16-3/4 inches above the finished floor.
Towels feed manually and continue to feed properly when a partial load is in place. Unlock the door to refill an empty or partially empty supply. Empty the waste receptacle manually as maintenance needs require.
