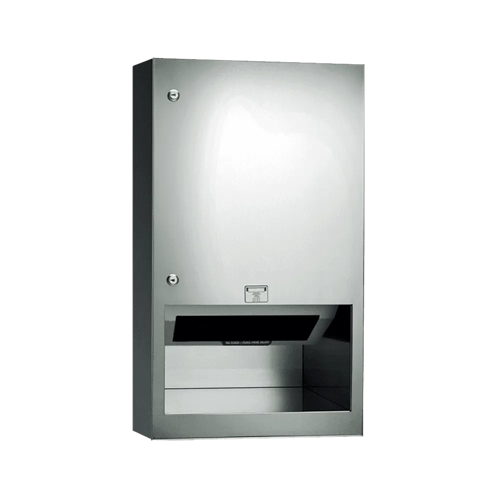

ASI 645210AC-9 Surface-Mounted Automatic Roll Paper Towel Dispenser
The ASI 645210AC-9 is a surface-mounted, AC-powered automatic roll towel dispenser with a satin-finish stainless steel cabinet and collar. Its no-touch sensor dispenses an owner-selected towel length from rolls up to 800 feet long.
Specifications and operation
- Accepts 8-inch-wide rolls; the owner sets towel length, delay, and economy using three switches.
- Type 304 stainless steel with satin finish; the current product copy specifies 20-gauge construction.
- Overall dimensions: 16-1/16 inches wide by 28 inches high by 9-1/2 inches deep.
- Uses a supplied AC adapter powered by 110–240 VAC, 50/60 Hz; adapter output is 6 VDC at 2 A.
- A locking door secures the roll. An LED indicates sensing and operation.
Installation and refill
Mount to the wall using at least four #10 self-threading screws, supplied by the installer, through the concealed mounting holes. The manufacturer specifies that the top of the rough wall opening is 3/4 inch below the top of the unit. Follow applicable local requirements for mounting height; the manufacturer's accessibility guidance depends on the available forward- or side-reach access and notes that local codes may require a lower position.
To refill, unlock the door and replace an empty or partially empty roll. A full roll can be loaded while a partial roll is moved to the stub-roll position, allowing feeding to continue. The manufacturer directs users to its Product Care & Maintenance Bulletin for cleaning instructions.
