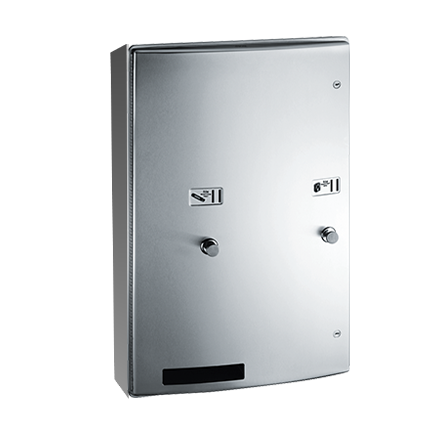

ASI 204684-9-F Roval Dual Napkin and Tampon Vendor
The ASI 204684-9-F is a surface-mounted dual vendor configured for free, no-coin operation. It dispenses up to 31 napkins and 22 tampons through independently operated dispensers. The related -25 and -50 configurations allow 25¢ and 50¢ operation.
Specifications and refill fit
- Capacity: 31 napkins and 22 tampons.
- Overall dimensions: 17-9/16 inches wide x 28 inches high x 5-5/8 inches deep; surface-mount collar: 9 inches.
- Satin-finish Type 304 stainless steel construction: 18-gauge door, 20-gauge cabinet, and 22-gauge collar; two flush tumbler locks.
- Napkin refills: single, cardboard-boxed packages measuring 4-1/4 x 3 x 1-1/8 inches. Tampon refills: cardboard tubes measuring 3/4 inch in diameter x 5-1/4 inches long.
Mounting and servicing
Mount to the wall with four #10 x 1-inch self-threading pan-head screws, supplied by others. The surface-mount collar is 9 inches. Product supplies are manually reloaded through the locked door as maintenance requires. Track weights must be used for positive feed. The selected product drops into the vending opening after actuation; an empty indicator displays when product is depleted.
