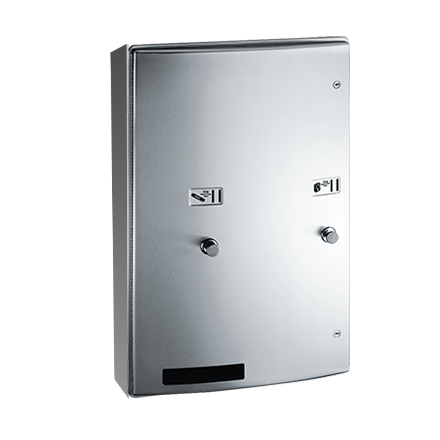

ASI 204684-9-25 Roval Surface-Mounted Dual Napkin and Tampon Vendor
This surface-mounted vendor dispenses 31 napkins and 22 tampons from independently operated tracks. The -25 model allows 25¢ operation; separate suffixes identify the 50¢ (-50) and free-operation (-F) models. After coin deposit and actuation, the selected product drops into the vending opening. When depleted, an indicator shows the empty condition and blocks that coin slot.
The door is 18-gauge Type 304 stainless steel with a satin finish and two flush tumbler locks. The cabinet is 20-gauge, and the 9-inch collar is 22-gauge Type 304 stainless steel. Overall dimensions are 17-9/16" W x 28" H x 5-5/8" D.
Installation and replenishment
Mount to the wall with four #10 x 1" self-threading pan-head screws; screws are by others. For the manufacturer's 2010 ADA accessibility guidance, install with coin slots no higher than 48" AFF; some local codes may require a lower height, such as 40" AFF. Open the locked door to reload the tracks as needed. Track weights must be used for positive product feed.
Napkins must be single, cardboard-boxed packages measuring 4-1/4" x 3" x 1-1/8"; tampons must be cardboard tubes measuring 3/4" diameter x 5-1/4". The spec sheet lists compatible examples and installation details.
