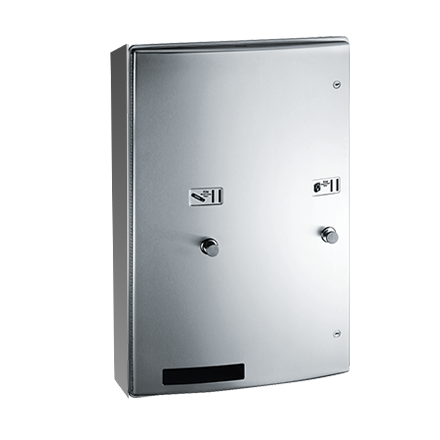

ASI 204684-9-50 Roval Dual Napkin and Tampon Vendor

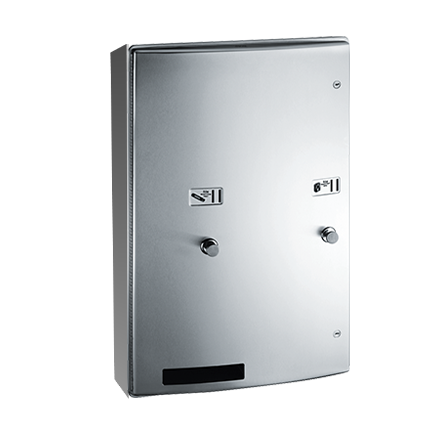

The ASI 204684-9-50 is a surface-mounted dual vendor configured for 50¢ operation. It dispenses up to 31 napkins and 22 tampons through independently operated dispensers. The universal coin mechanism is also available in 25¢ (-25) and free, no-coin (-F) configurations.
Specifications and refill fit
- Capacity: 31 napkins and 22 tampons.
- Overall dimensions: 17-9/16 inches wide x 28 inches high x 5-5/8 inches deep; surface-mount collar: 9 inches.
- Satin-finish Type 304 stainless steel construction: 18-gauge door, 20-gauge cabinet, and 22-gauge collar; two flush tumbler locks.
- Napkin refills: single, cardboard-boxed packages measuring 4-1/4 x 3 x 1-1/8 inches. Tampon refills: cardboard tubes measuring 3/4 inch in diameter x 5-1/4 inches long.
Mounting and servicing
Mount to the wall with four #10 x 1-inch self-threading pan-head screws, supplied by others. ASI's guidance for the 2010 ADA Accessibility Standards specifies coin slots no higher than 48 inches above finished floor; some local codes may require a 40-inch maximum. Check applicable local requirements when planning the mounting height. Unlock the door to reload the product tracks as needed. Track weights must be used for positive feed. When depleted, the empty indicator displays and blocks the coin slot.
