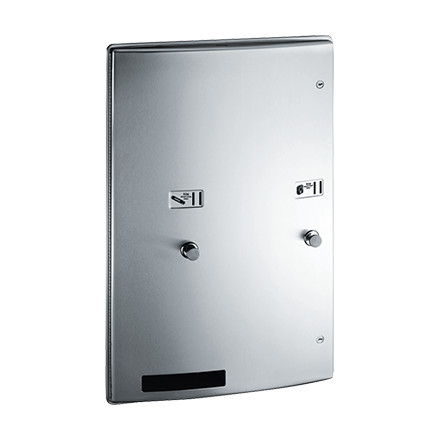

ASI 204684-25 Roval Recessed Dual Napkin and Tampon Vendor
The ASI 204684-25 is a recessed dual sanitary-product vendor configured for 25¢ operation. Its separate napkin and tampon dispensers operate independently, with capacity for 31 boxed napkins and 22 cardboard-tube tampons.
Specifications and product fit
- Overall dimensions: 17-5/16 in. W x 27-3/4 in. H x 5-5/8 in. D. Required rough wall opening: minimum 15-5/8 in. W x 26-1/8 in. H x 4 in. D.
- Capacity assumes single, semigloss cardboard napkin boxes measuring 4-1/4 x 3 x 1-1/8 in. and cardboard tampon tubes measuring 3/4 in. diameter x 5-1/4 in.
- 18-gauge Type 304 satin-finish stainless steel door and 20-gauge Type 304 stainless steel cabinet; the door has two flush tumbler locks and a concealed multi-staked piano hinge.

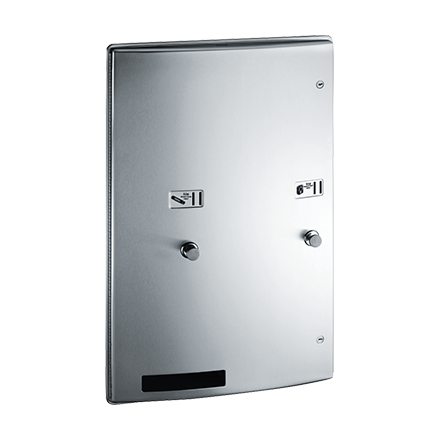

- The universal coin mechanism is available in 25¢, 50¢, or free operation by suffix: -25, -50, or -F. Napkin and tampon dispensers operate independently.
Installation and replenishment
Mount with four #10 x 1-in. self-threading pan-head screws (by others). For installation guidance referencing the 2010 ADA Accessibility Standards, ASI specifies coin slots no higher than 48 in. AFF; some local codes may require a lower maximum. The coin-slot centerline is 15-7/8 in. above the unit's bottom edge.
After actuation, the selected product drops into the vending opening. An empty indicator displays when supply is depleted and blocks the coin slot. Unlock the door to reload the tracks manually as needed; track weights must be used for positive feed.
